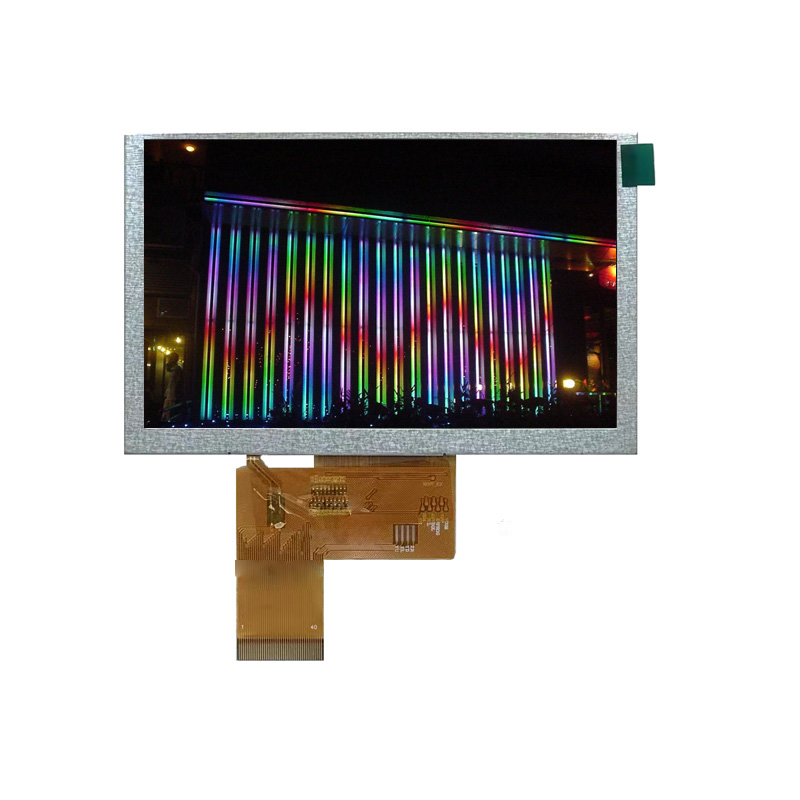

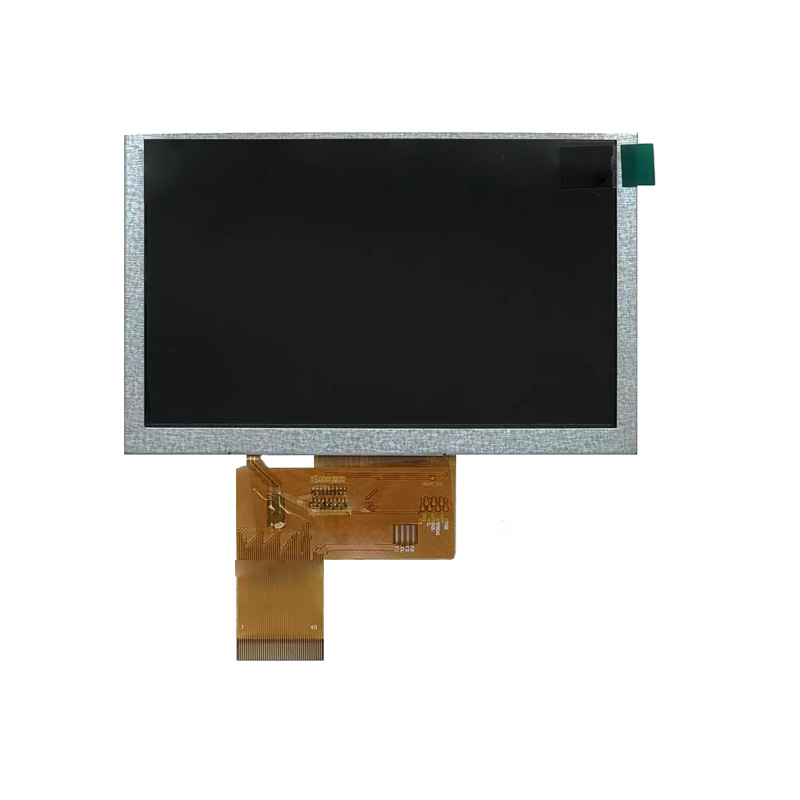

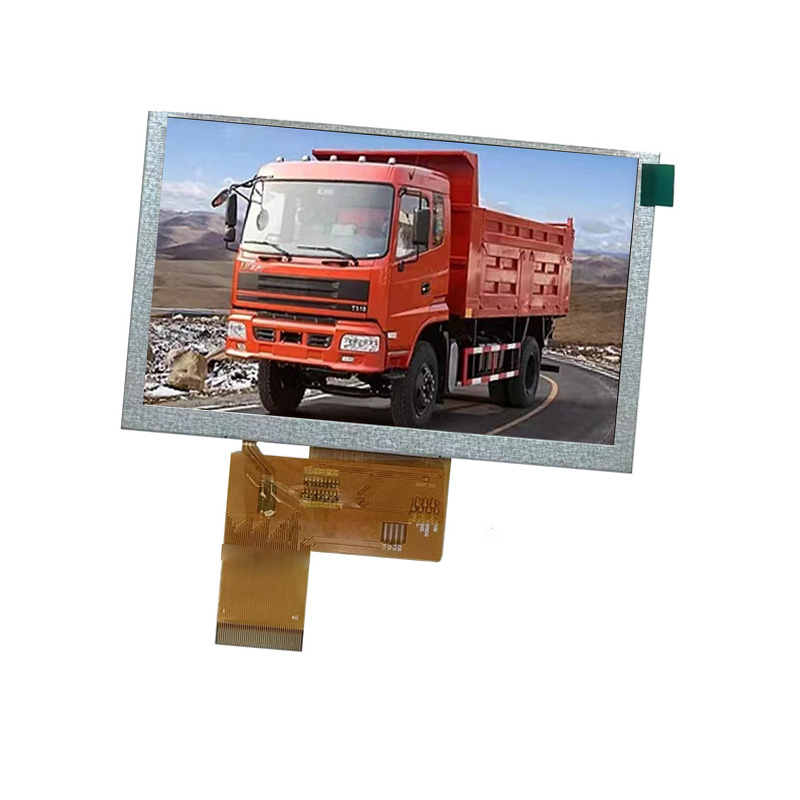

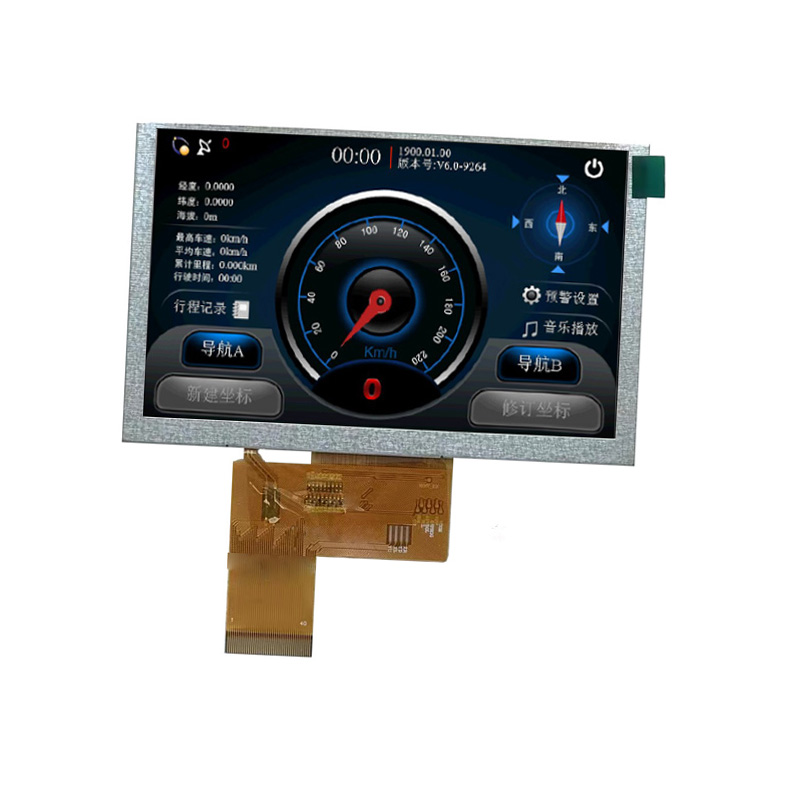

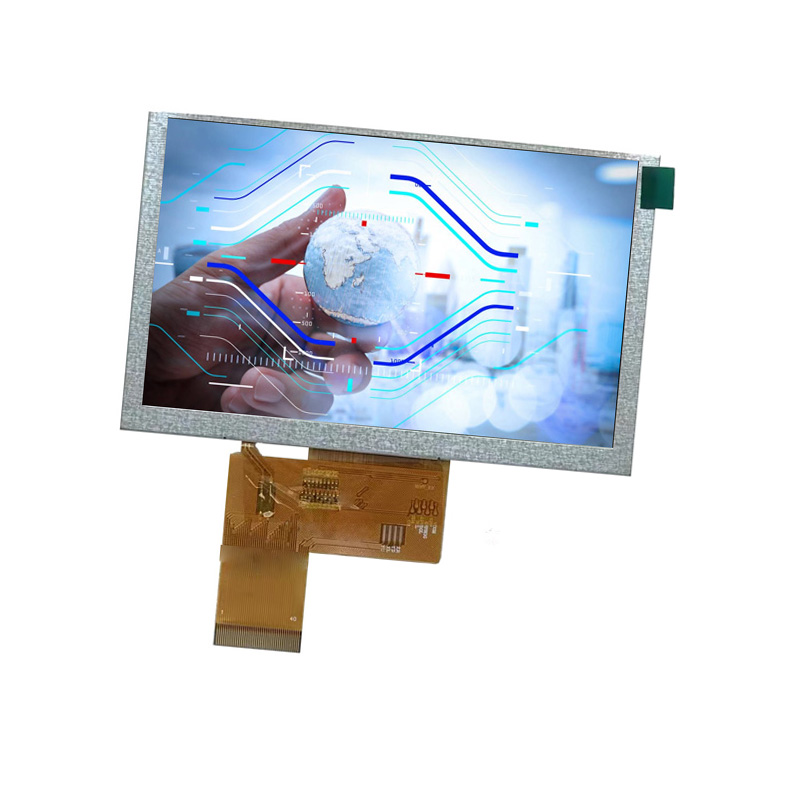

Golden Vision 5.0 Inch 480*272 TFT LCD Display Module LCD Screen

Golden Vision 5.0 Inch 480*272 TFT LCD Display Module LCD Screen

Part No: GVH0500

Panel Size: 5.0 Inch

LCD Type: IPS

Module Size: 120.7x75.8 MM

Display Area: 110.88x62.832 MM

Number of Dots: 480x272

View angle: All

Driver IC: LI6482C

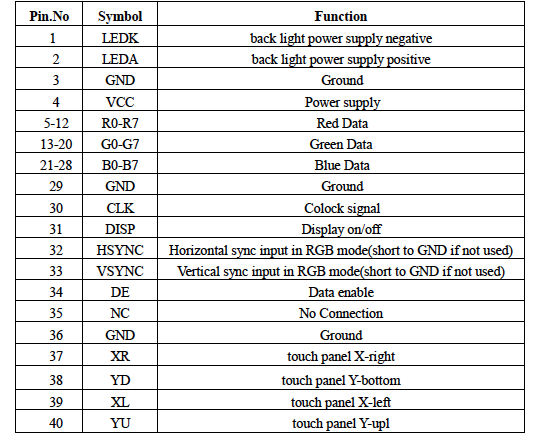

Interface Pins: 40 pin RGB

Luminance: 500cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 5.0-inch transmissive color active matrix LCD module.
It includes a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight can be customized to your preferred brightness level.
Optional capacitive and resistive touch panels, as well as demo boards, are available.
Our expert team offers customized solutions tailored to your specific needs.
Designed for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, ensuring environmental responsibility.

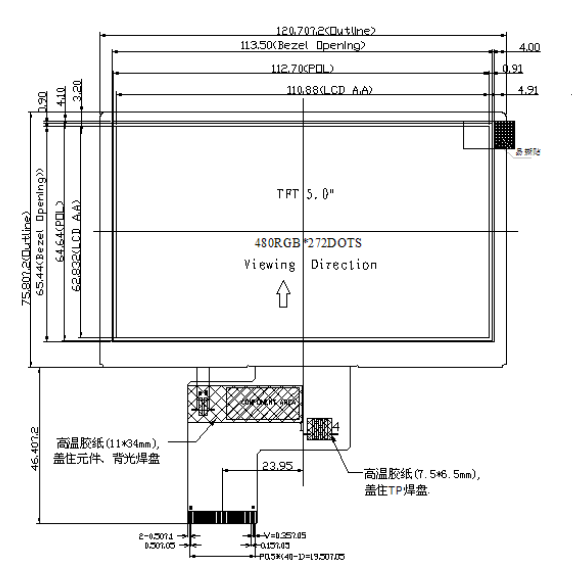

Product Drawing:

Hot Tags : 5.0 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 5.0 LCD Display Module
