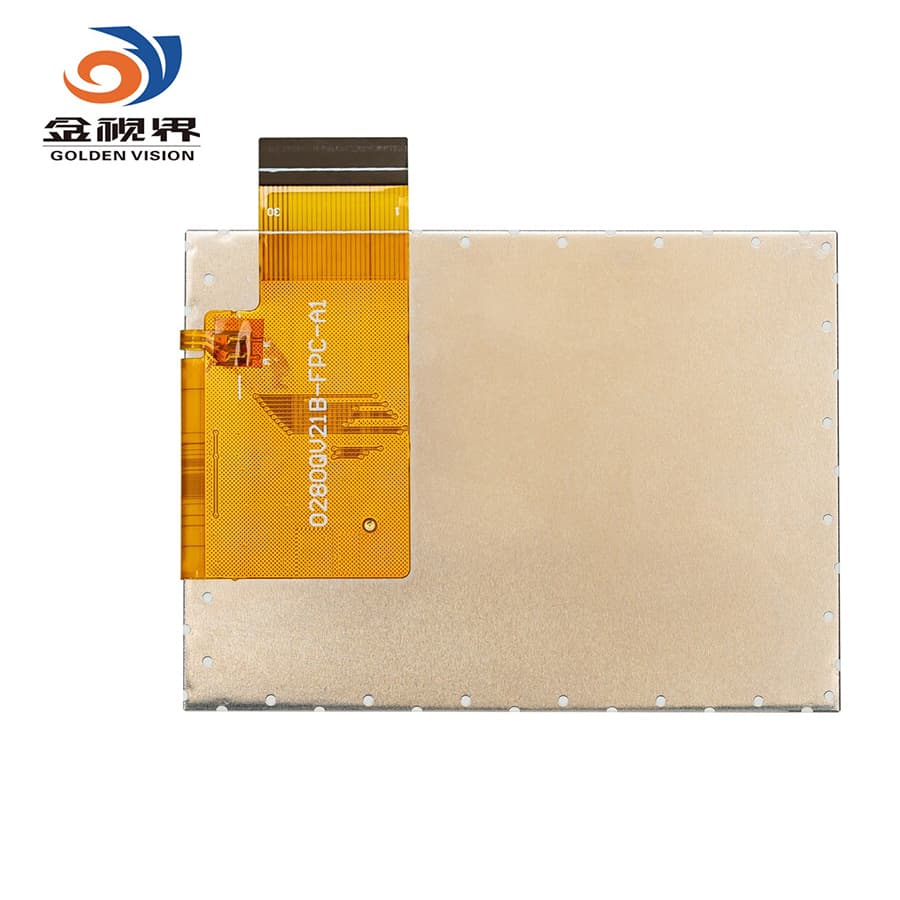

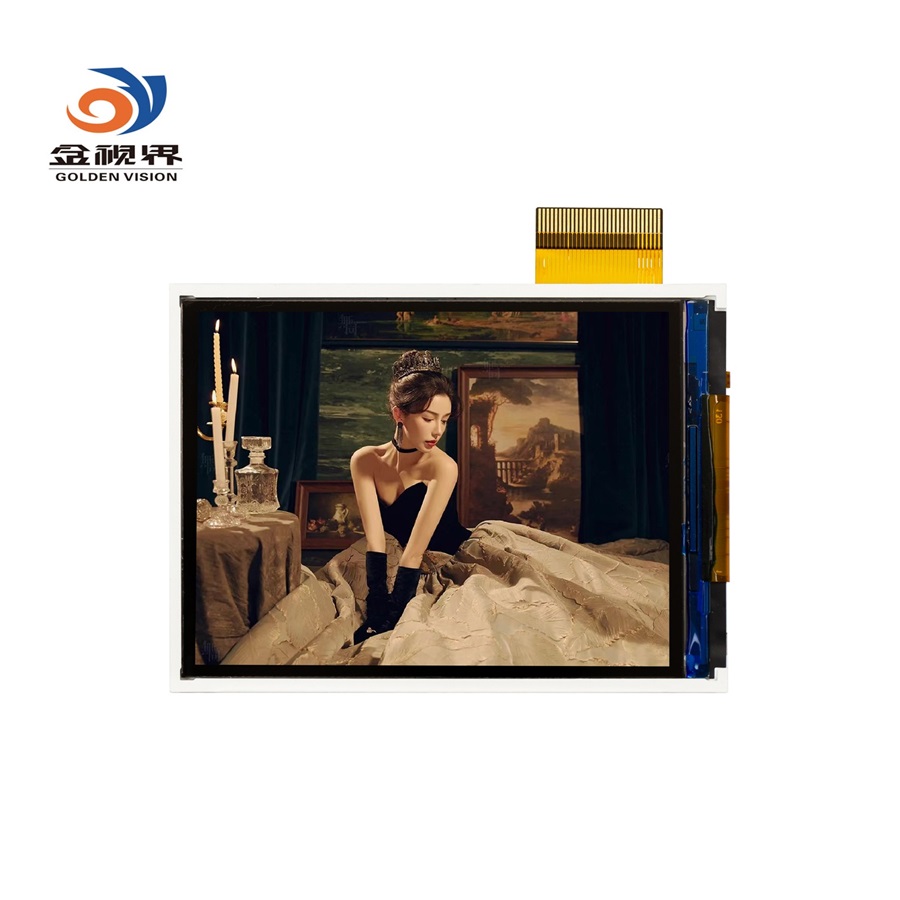

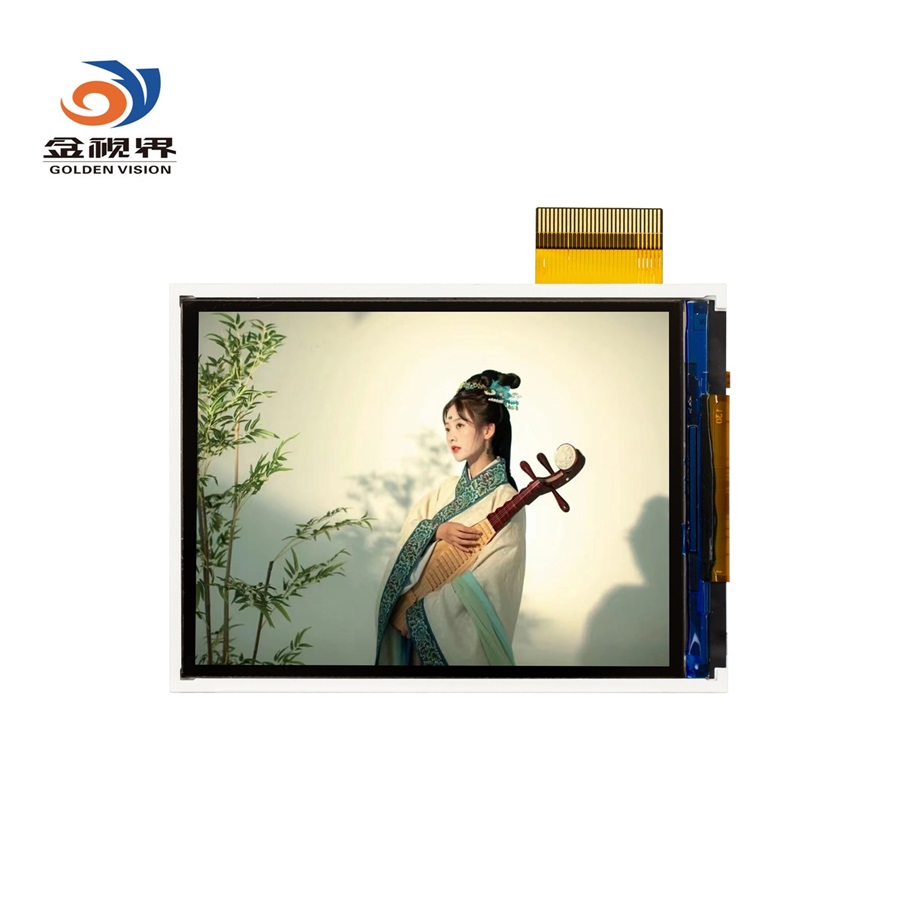

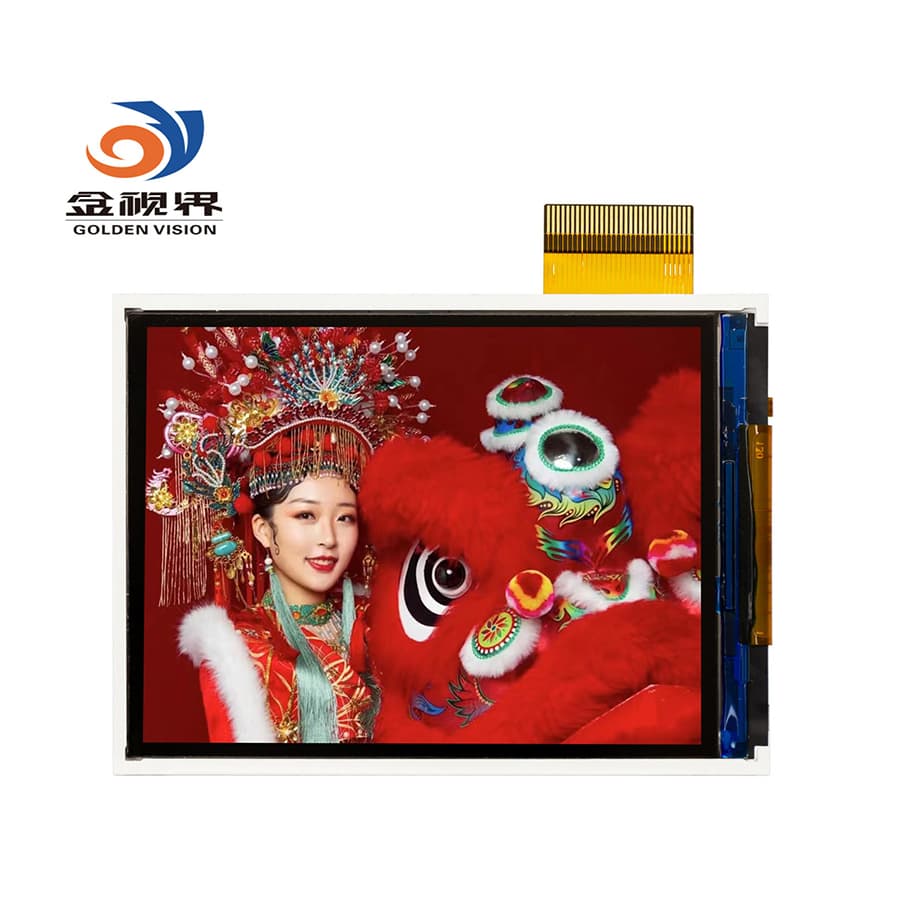

Golden Vision 2.8 Inch 240*320 IPS TFT LCD Display Module LCD Screen
Part No: GVH0280QV21B
Panel Size: 2.8 Inch
LCD Type: IPS
Module Size: 49.9x67.5 MM
Display Area: 43.2x57.6 MM
Number of Dots: 240x320
View angle: ALL
Driver IC: ST7789V2-G4-A
Interface Pins: 30 pins MCU
LED Numbers: 4 LEDS
Luminance: 250cd/m2
With or without TP: without
Product Features:
This is a 2.8-inch transmissive color active matrix liquid crystal display (LCD) module. It includes a TFT LCD panel, driver IC, FPC, and backlight unit, with customizable backlight brightness to meet your specifications. Options for capacitive and resistive touch panels, as well as demo boards, are available. This standard, ready-made TFT LCD module is supported by an experienced team for customized solutions. It is suitable for applications such as infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, charging piles, and more. The module is RoHS compliant.

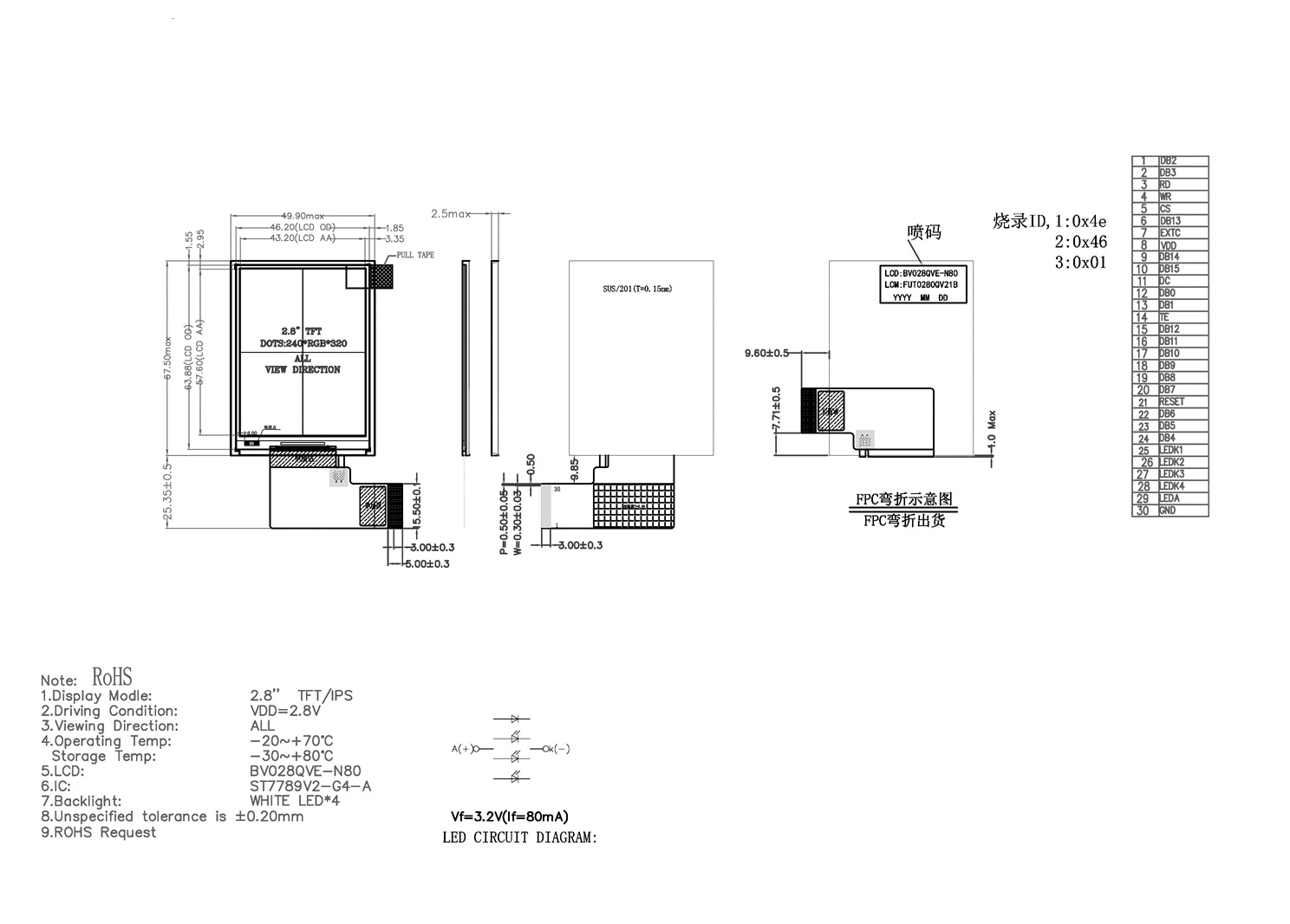

Product Drawing:
