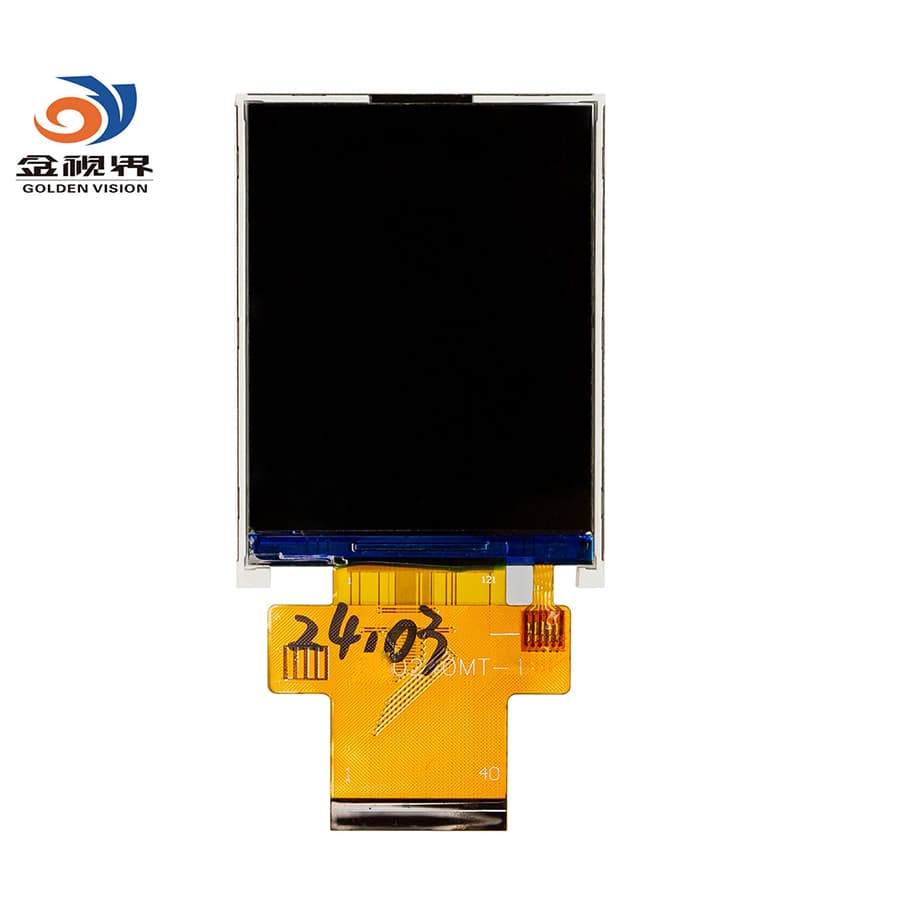

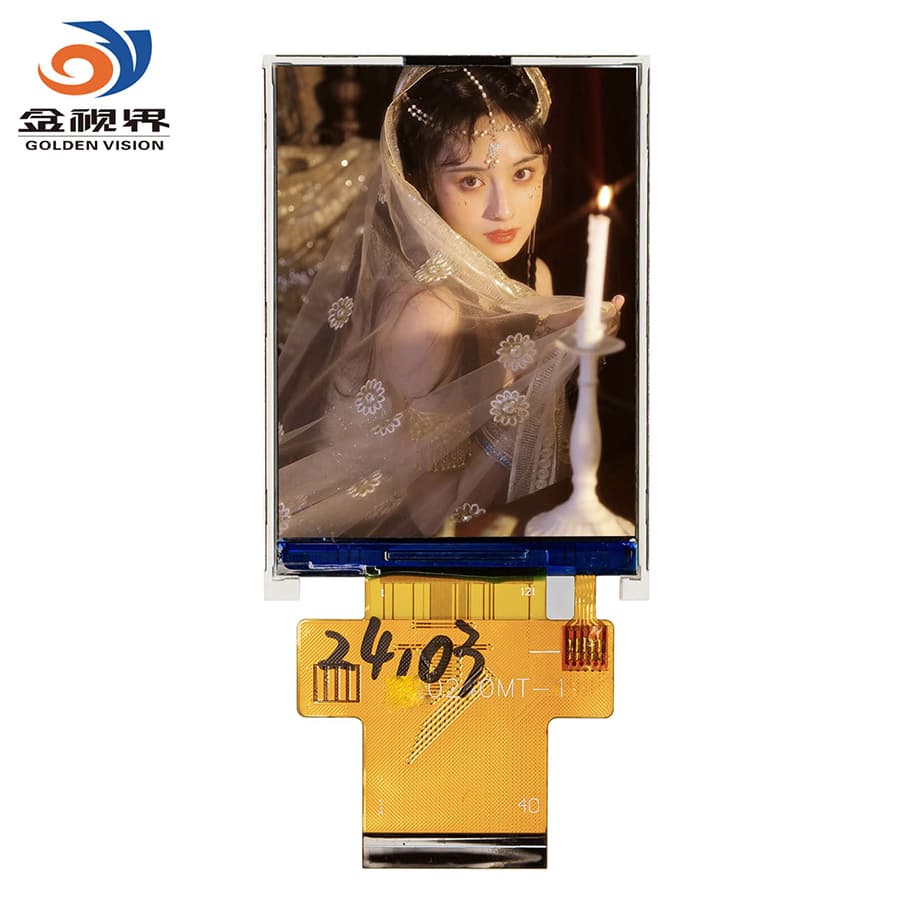

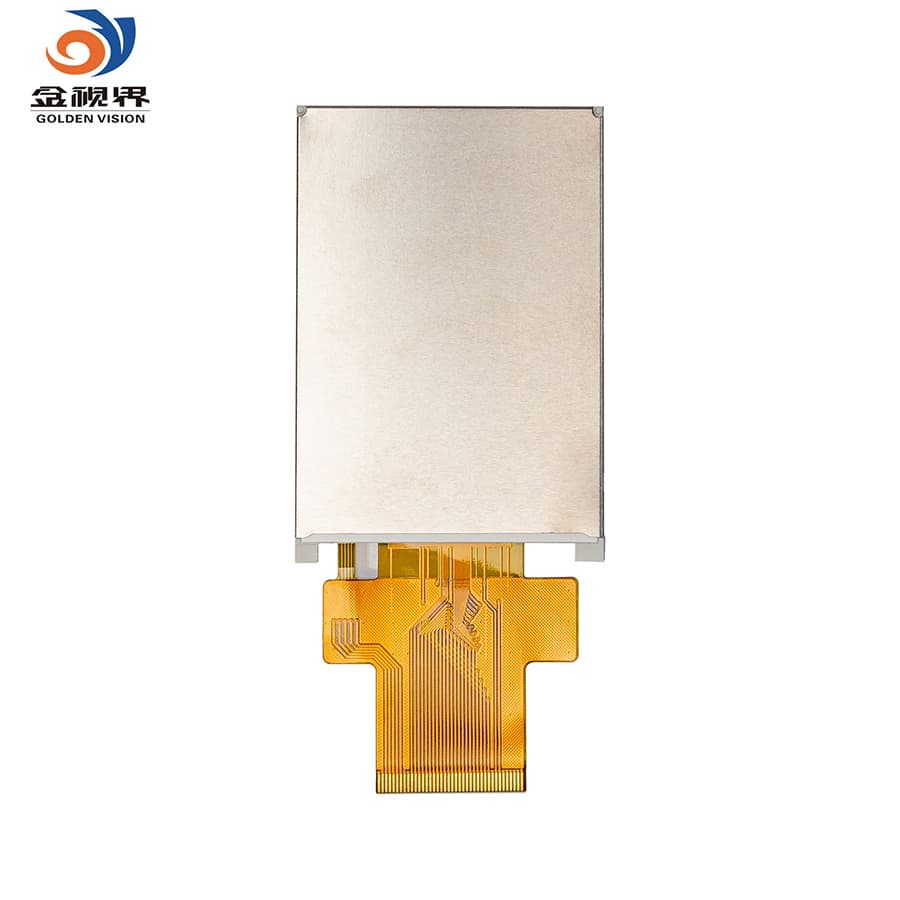

Golden Vision 2.4 Inch 240*320 IPS TFT LCD Display Module LCD Screen
Part No: GVH0240QV103B
Panel Size: 2.4 inch TFT
LCD Type: IPS
Module Size: 42.32x59.89 MM
Display Area: 36.72x48.96 MM
Number of Dots: 240x320
View angle: All
Driver IC: ST7789V2
Interface Pins: 40 PINS MCU
LED Numbers: 4 LEDS
Luminance: 300cd/m2
With or without TP: without
Product Features:
This is a 2.4-inch transmissive color active matrix liquid crystal display (LCD) module. It features a TFT LCD panel, driver IC, FPC, and backlight unit, with customizable backlight brightness available to meet your needs. Both capacitive and resistive touch panel options, along with demo boards, are provided. This standard, ready-made TFT LCD module is backed by our experienced team for customized solutions. It's ideal for applications such as infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, and charging piles. Additionally, it is RoHS compliant.

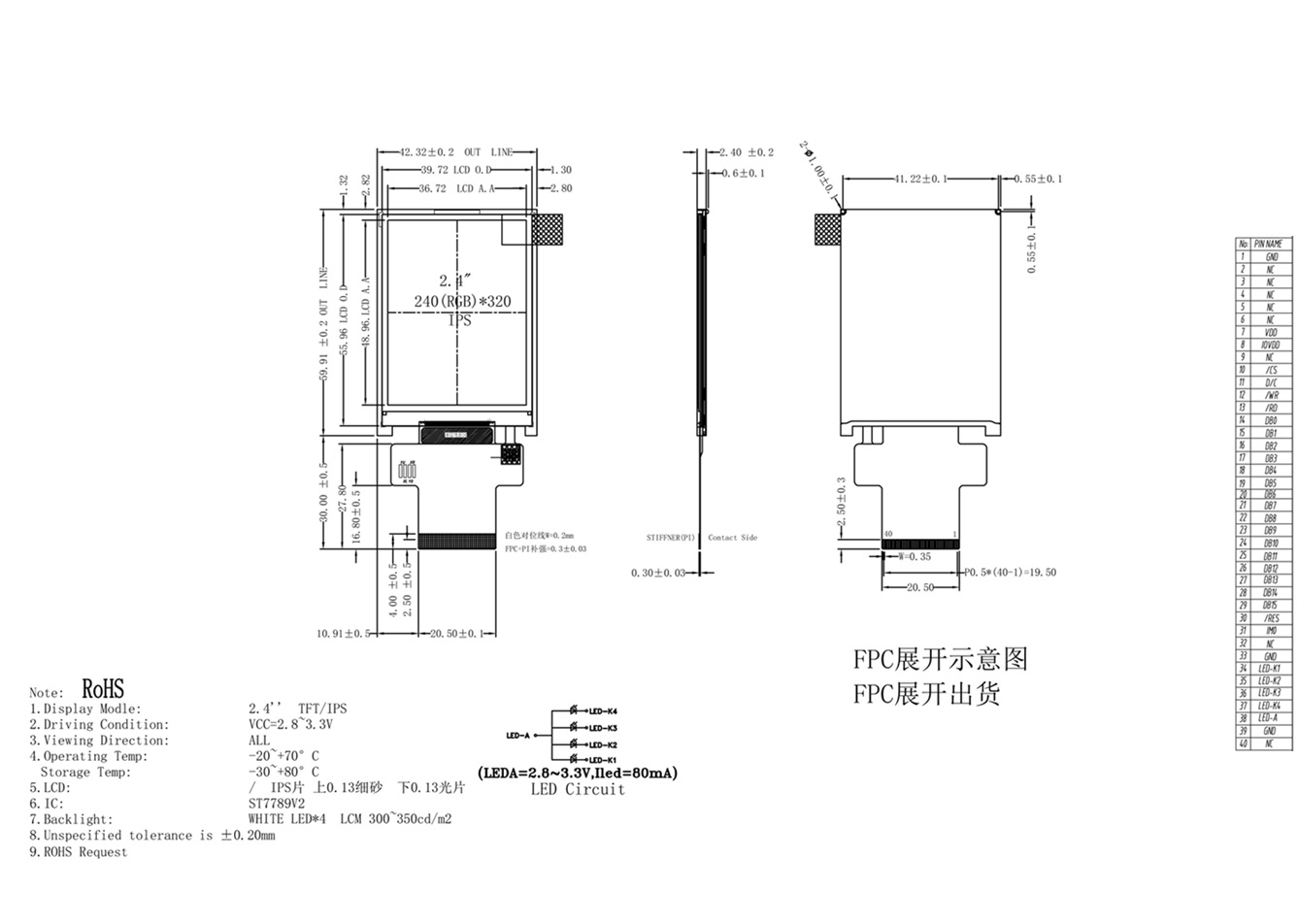

Product Drawing:
