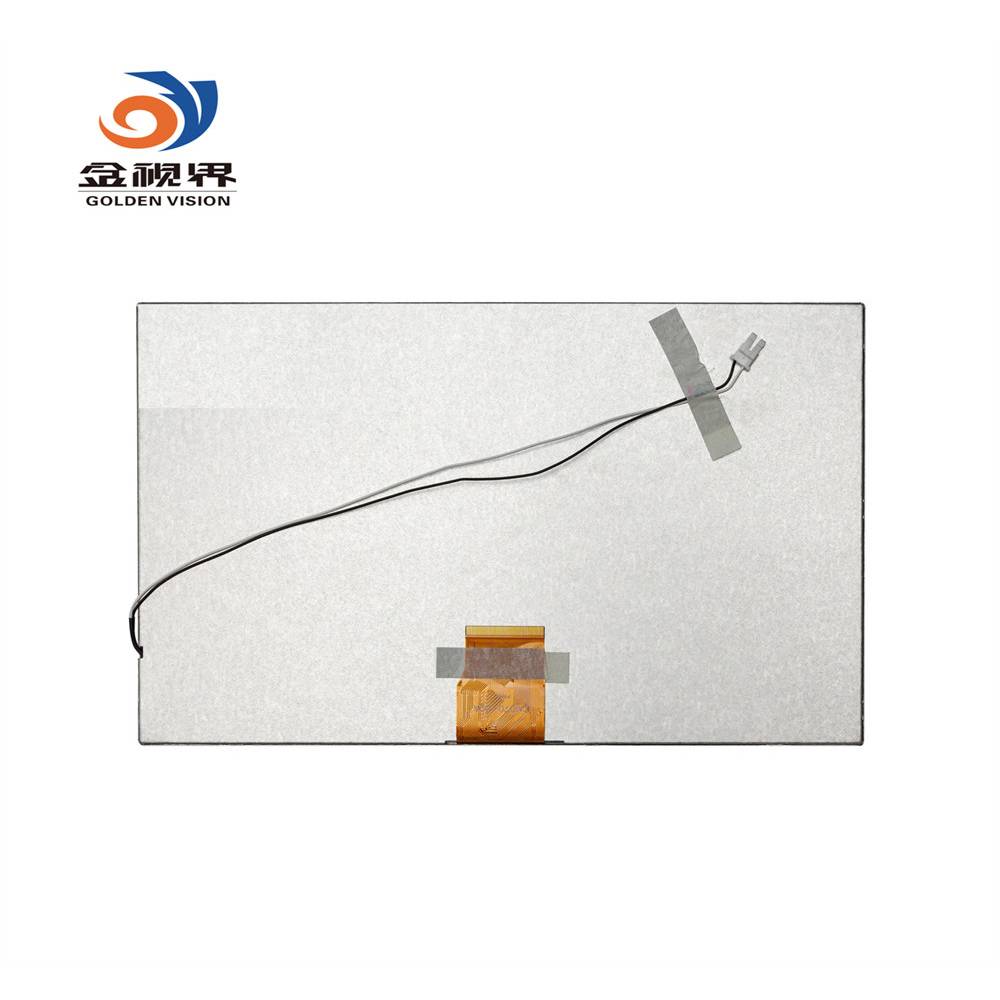

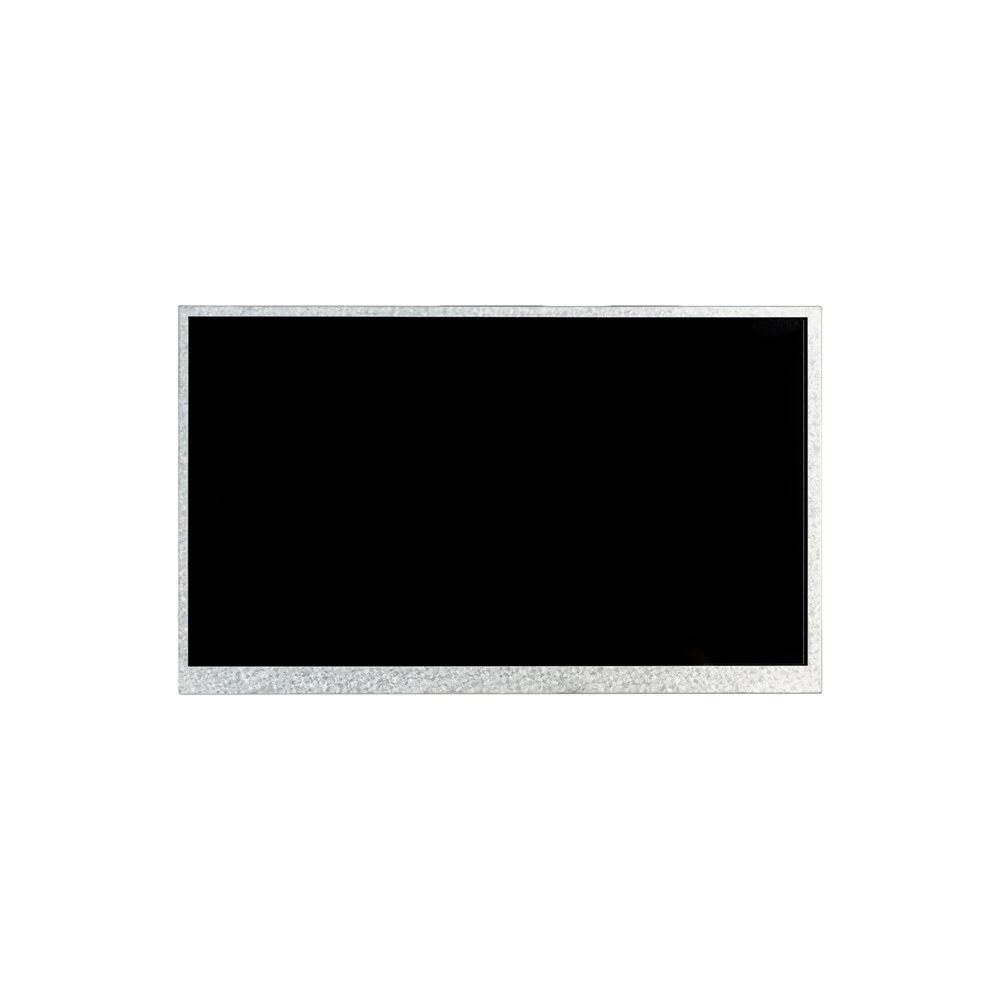

Golden Vision 10.1 Inch 1024*600 IPS TFT Display Module LCD Screen
Part No: GVH101SV08H
Panel Size: 10.1 Inch
LCD Type: IPS
Module Size: 235x143 MM
Display Area: 222.73x125.28 MM
Number of Dots: 1024x600
View angle: ALL
Driver IC: HX8696-AOI
Interface Pins: 50pins RGB
LED Numbers: 33 LEDS
Luminance: 180cd/m2
With or without TP: without
Product Features:
This is a 10.1-inch transmissive color active matrix liquid crystal display (LCD) module. It consists of a TFT LCD panel, driver IC, FPC, and backlight unit, with customizable brightness options for the backlight. You can choose between capacitive and resistive touch panel options, as well as demo boards. This standard, ready-made TFT LCD module is backed by our experienced team for customized solutions. It's applicable for a wide range of uses, including infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, and charging piles. Additionally, it is RoHS compliant.

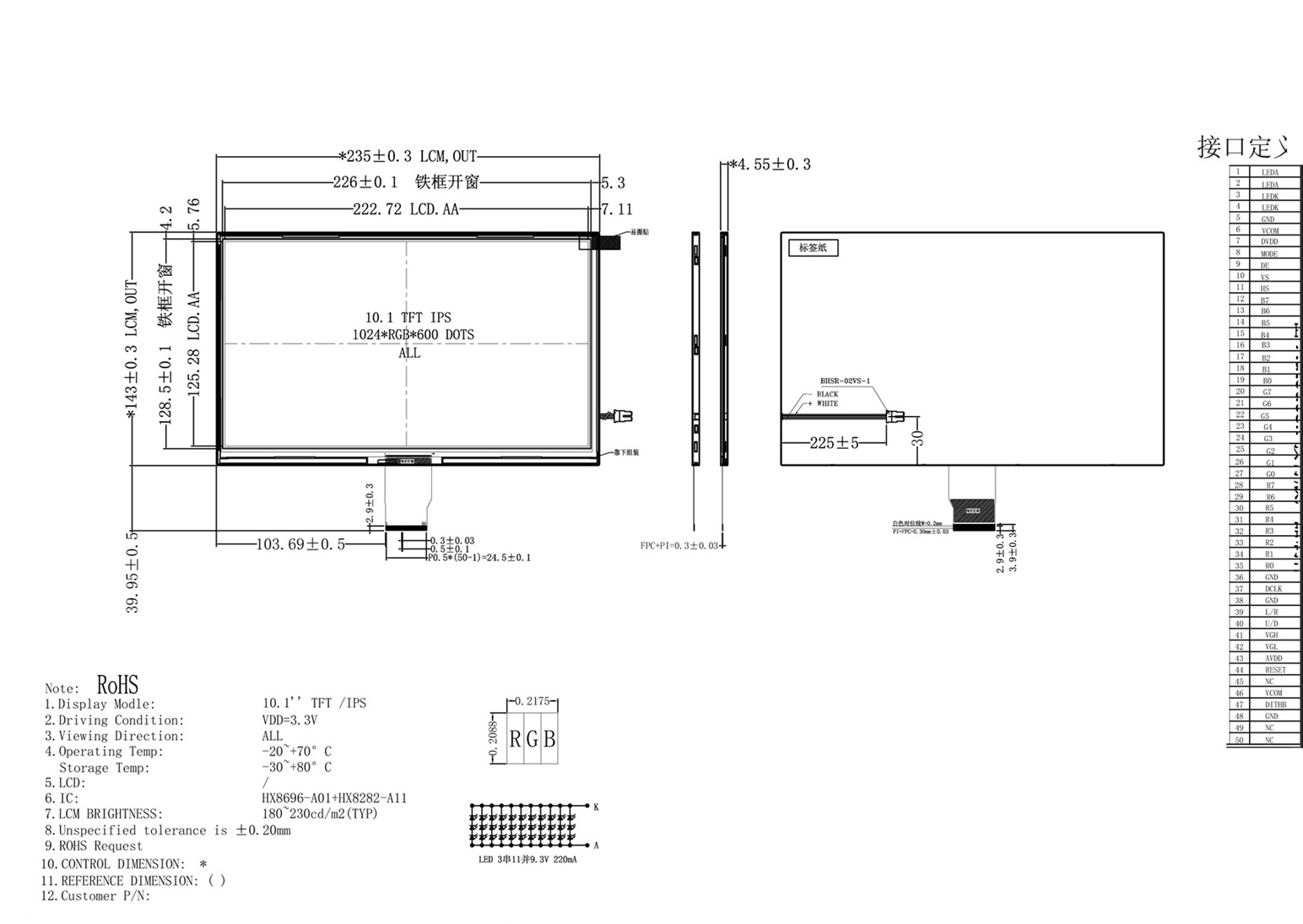

Product Drawing:
