Golden Vision 1.54 Inch Square 240*240 IPS TFT LCD Display Module Screen
Part No: GVH0154Q08H
Panel Size: 1.54 inch TFT
LCD Type: IPS
Module Size: 30.52X33.72 MM
Display Area: 27.72X27.72 MM
Number of Dots: 240X240
View angle: all
Driver IC: ST7789V
Interface Pins: 15 pin SPI
LED Numbers: 3 leds
Luminance: 330cd/m2
with or without TP: WITHOUT TP
Product Features:
This is a 1.54-inch transmissive color active matrix liquid crystal display (LCD) module. It consists of a TFT LCD panel, driver IC, FPC, and backlight unit, with customizable backlight brightness available upon request. Both capacitive and resistive touch panel options, as well as demo boards, are offered. This standard, ready-made TFT LCD module is supported by our experienced team for customized solutions. It's suitable for applications in infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, charging piles, and more. Additionally, it is RoHS compliant.

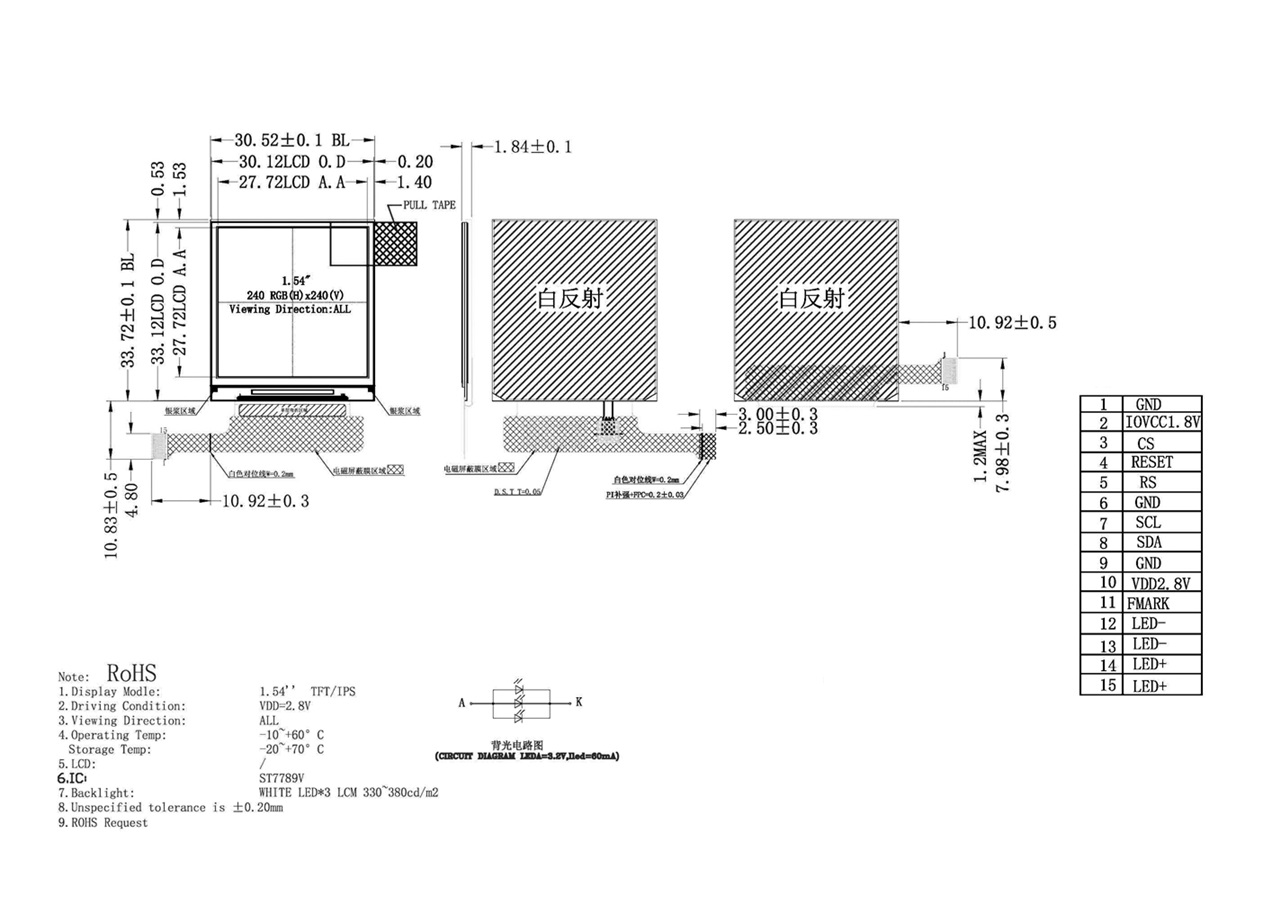

Product Drawing:
