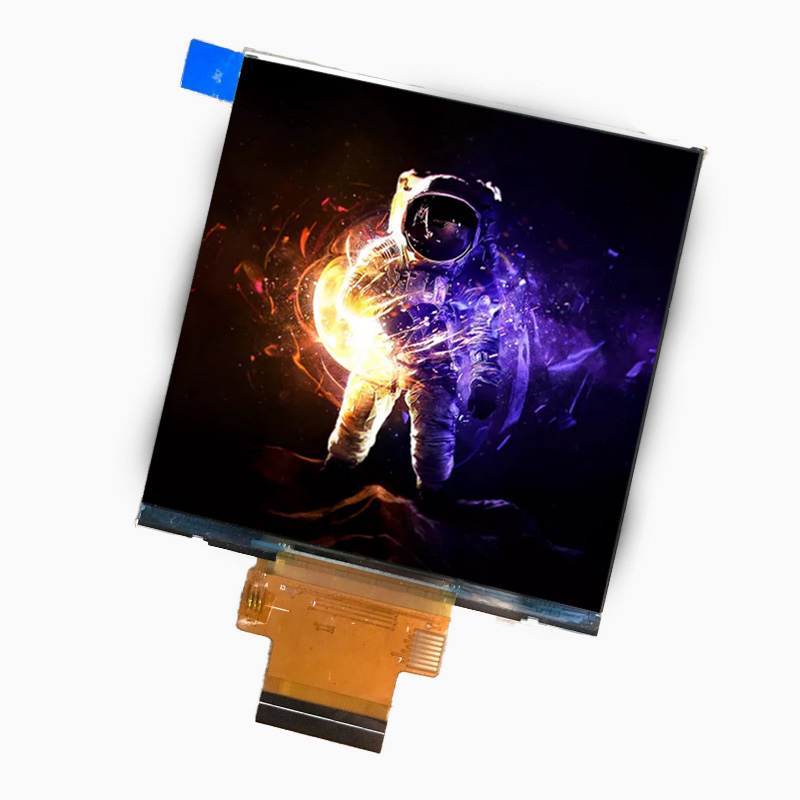

Golden Vision 4.0 Inch 480*480 TFT LCD Display Module LCD Screen
Part No: GVH0400
Panel Size: 4.0 Inch
LCD Type: IPS
Module Size: 78.98x74.83 MM
Display Area: 71.86×70.18 MM
Number of Dots: 480x480
View angle: All
Driver IC: ST7701S
Interface Pins: 40 pin SPI/RGB/MIPI
Luminance: 350cd/m2
Product Features:
This is a 4.0-inch transmissive color active matrix LCD module.
It features a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight can be customized with various brightness levels based on your needs.
Optional capacitive and resistive touch panels, as well as demo boards, are available.
Our skilled team provides customized solutions tailored to your requirements.
Suitable for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
Complies with RoHS standards for environmental safety.

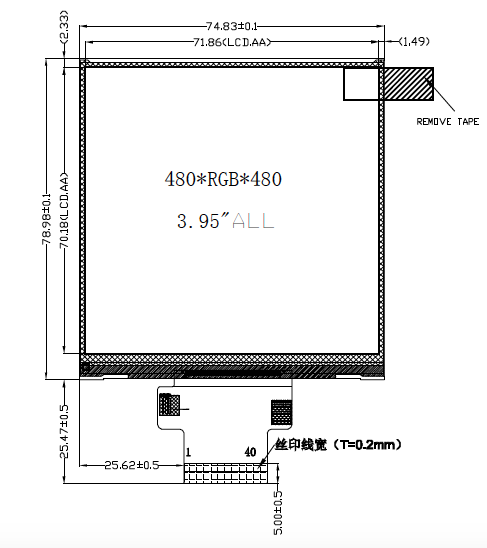

Product Drawing:
