Golden Vision 3.5 Inch 320*240 IPS TFT LCD Display Module LCD Screen
Part No: GVH0350
Panel Size: 3.5 Inch
LCD Type: IPS
Module Size: 76.2x63.2 MM
Display Area: 70.08x52.56 MM
Number of Dots: 320x240
View angle: All
Driver IC: ST7272A
Interface Pins: 54 pin RGB
Luminance: 350cd/m2
Product Features:

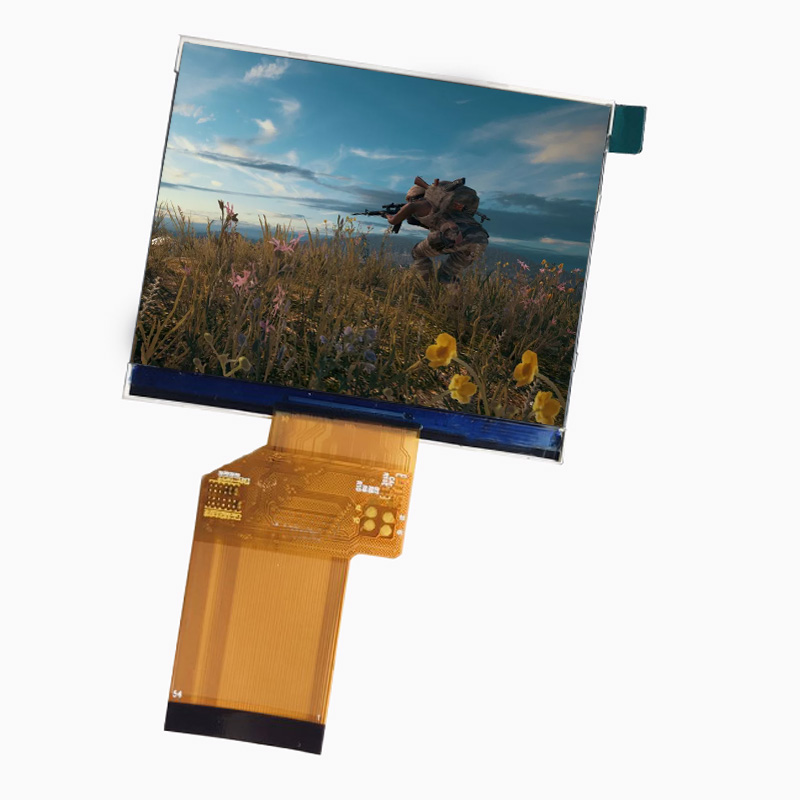

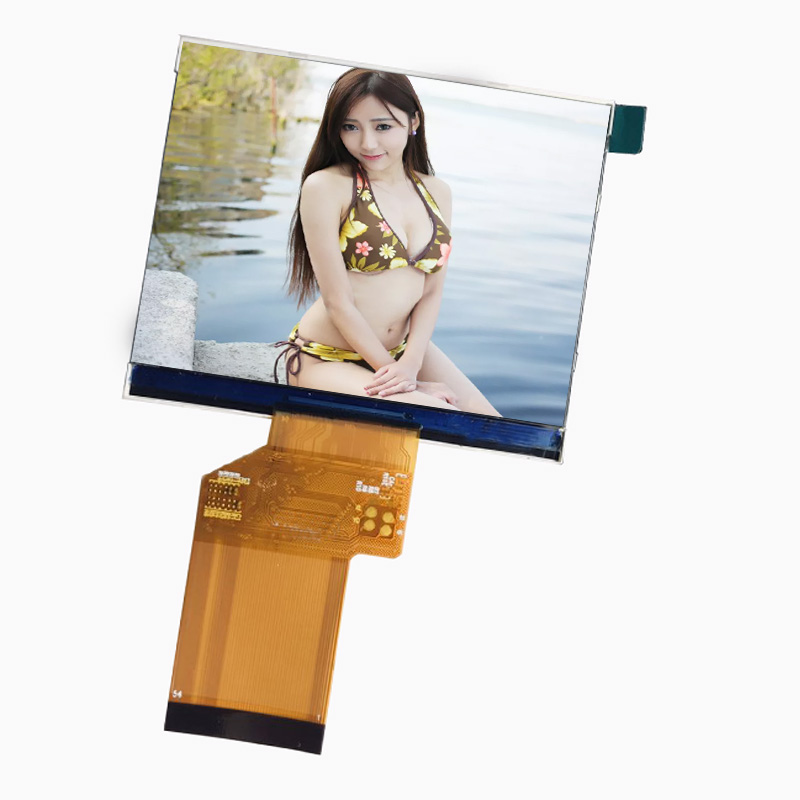

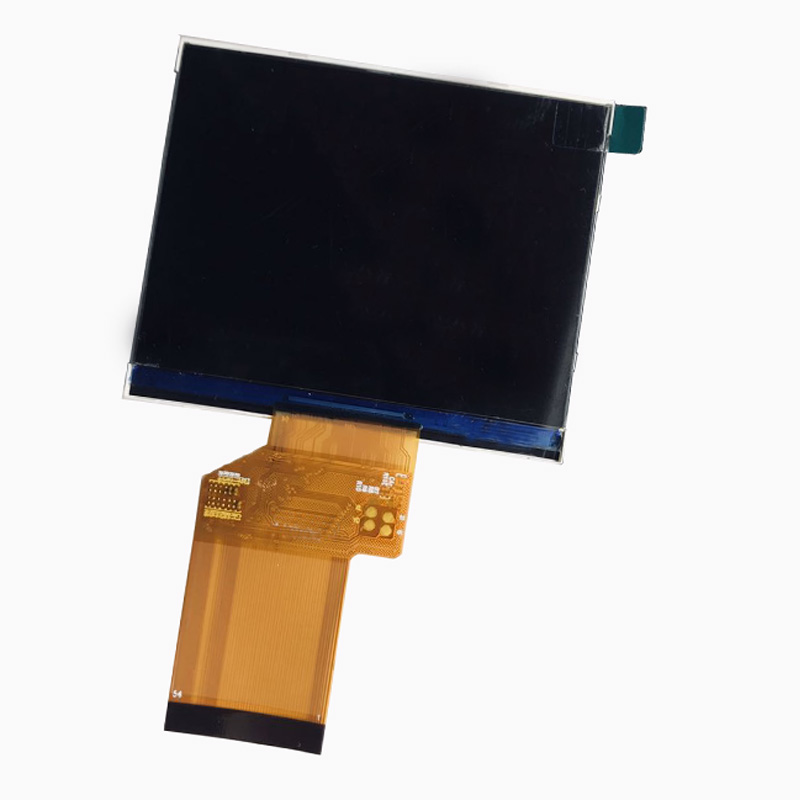

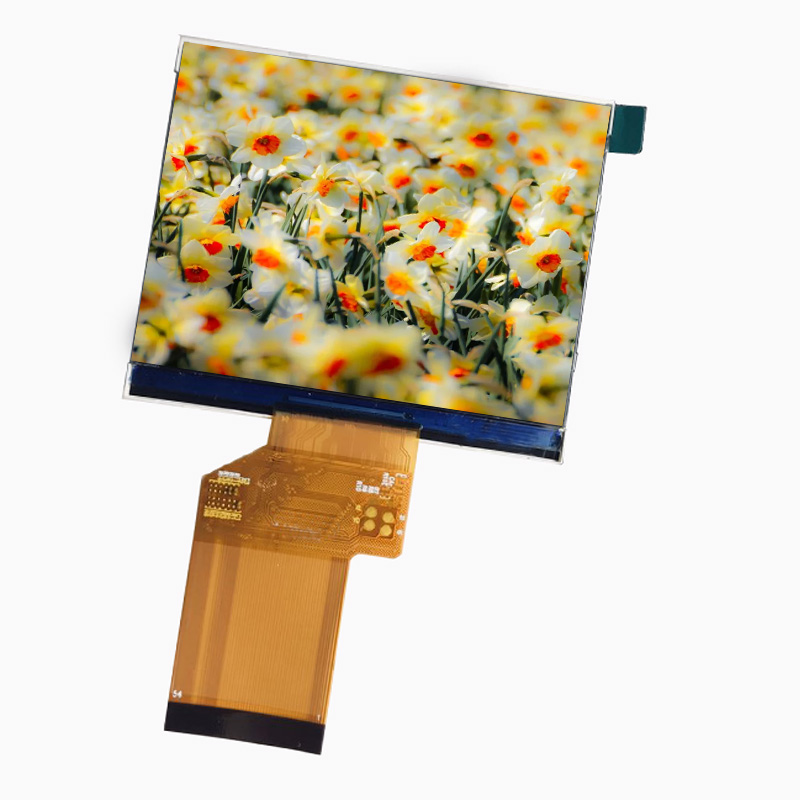

This is a 3.5-inch transmissive color active matrix LCD module.
It consists of a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to suit your specific requirements.
Both capacitive and resistive touch panels, along with demo boards, are available as options.
This is a standard, ready-to-use TFT LCD module.
Our experienced team also offers tailored solutions.
It is suitable for a wide range of applications, including infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
Complies with RoHS standards.

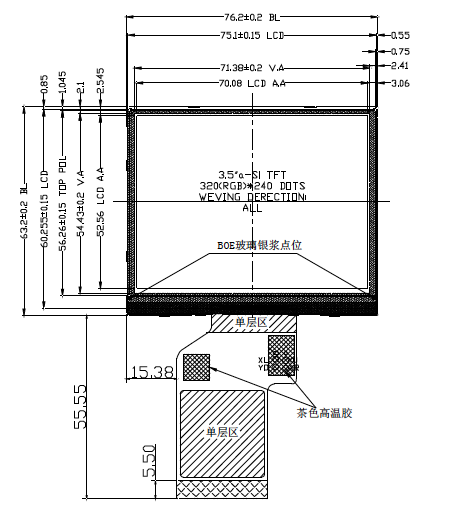

Product Drawing:
