Golden Vision 1.77 Inch 128*160 TFT LCD Display Module LCD Screen

Home

TFT display module

Golden Vision 1.77 Inch 128*160 TFT LCD Display Module LCD Screen

Golden Vision 1.77 Inch 128*160 TFT LCD Display Module LCD Screen

Part No: GVH0177

Panel Size: 1.77 Inch

LCD Type: TN

Module Size: 34.7x46.72 MM

Display Area: 28.03×35.04 MM

Number of Dots: 128x160

View angle: 6 O'CLOCK

Interface: MCU

Luminance: 300 (Min) cd/m²

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

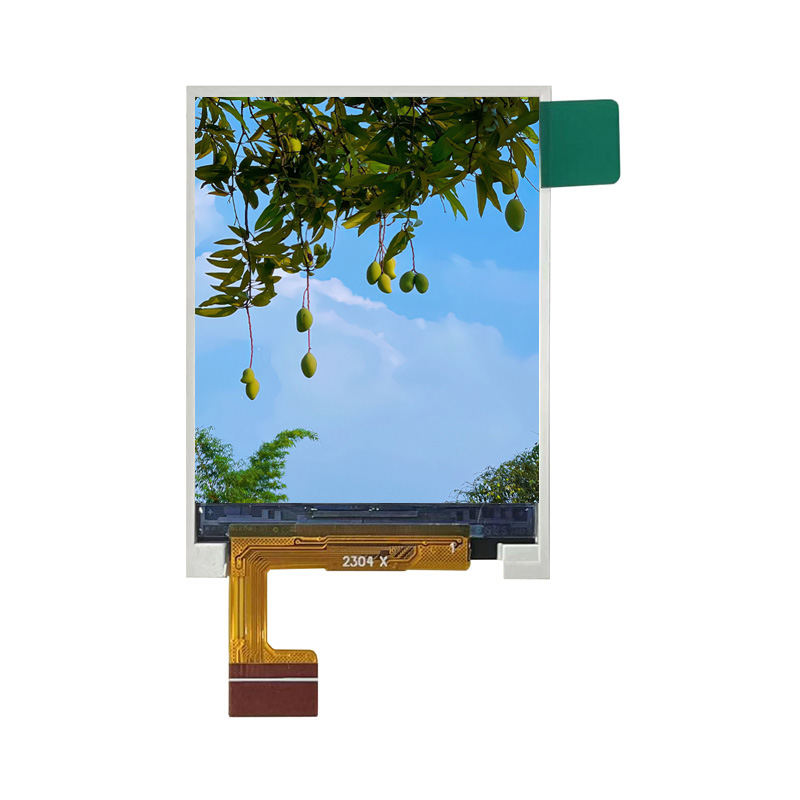

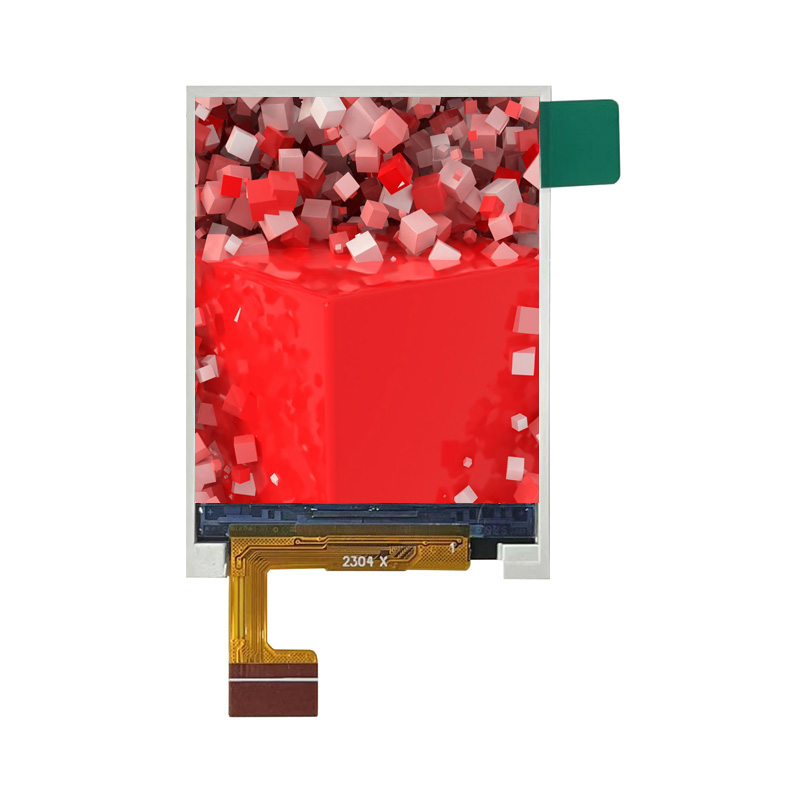

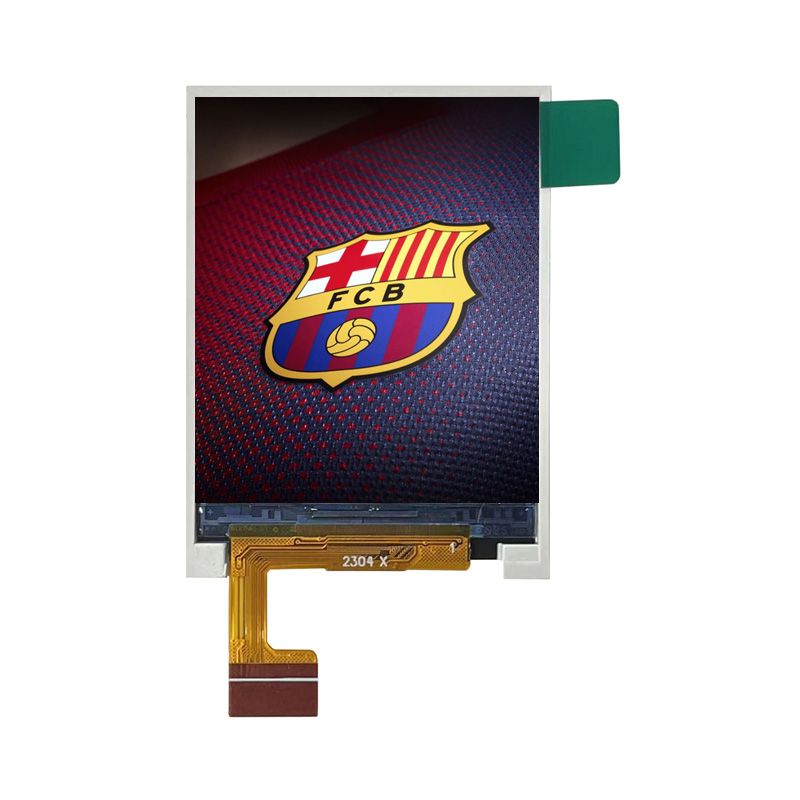

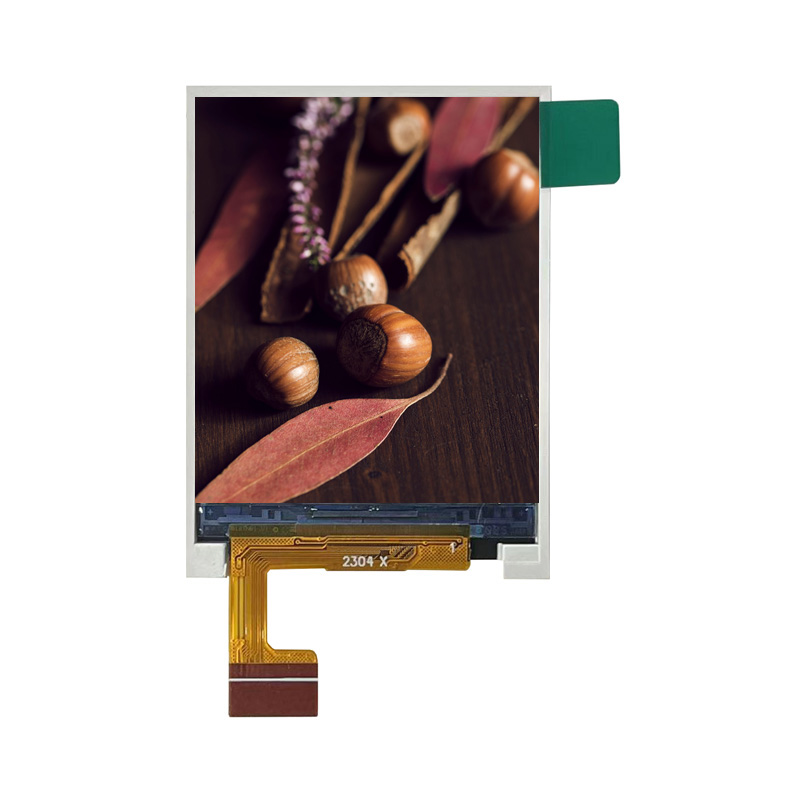

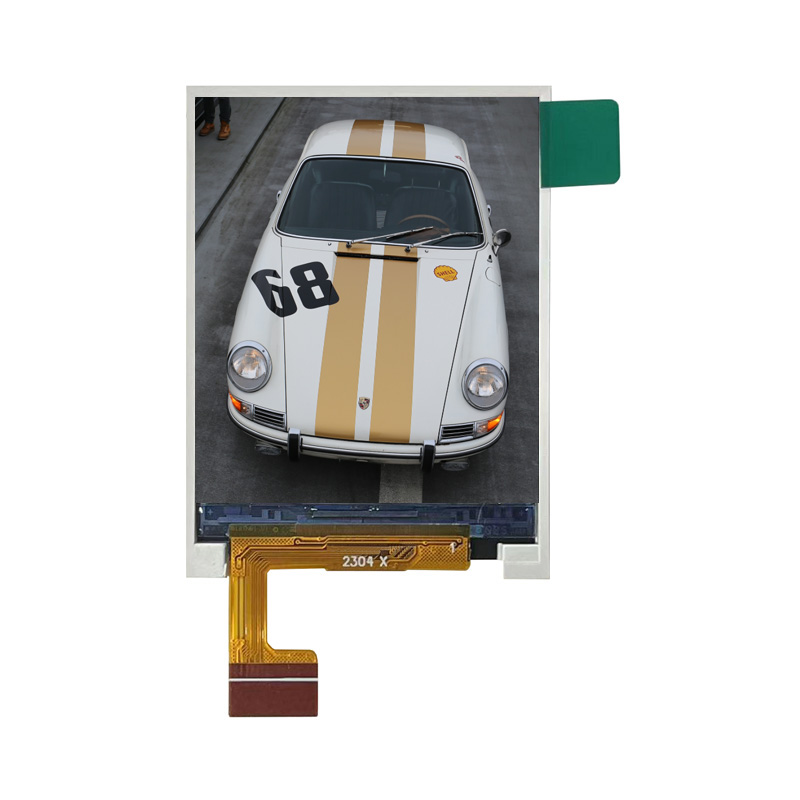

This is a 1.77-inch transmissive color active matrix LCD module.
It features a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to fit your specific requirements.
Optional capacitive and resistive touch panels, as well as demo boards, are available.
Our experienced team offers tailored solutions to meet your needs.
Ideal for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, ensuring adherence to environmental standards.

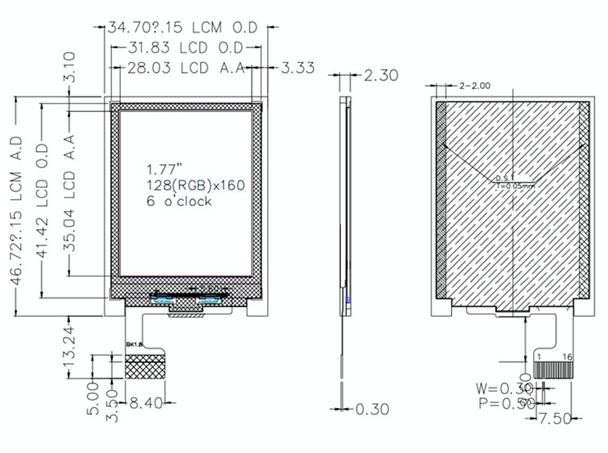

Product Drawing:

Hot Tags : 1.77 Inch TFT LCD Display Custom TFT LCD Display TN TFT LCD Module TN TFT LCD Display Module 1.77" LCD Display Module
