Golden Vision 1.69 Inch 240*280 TFT LCD Display Module LCD Screen

Home

TFT display module

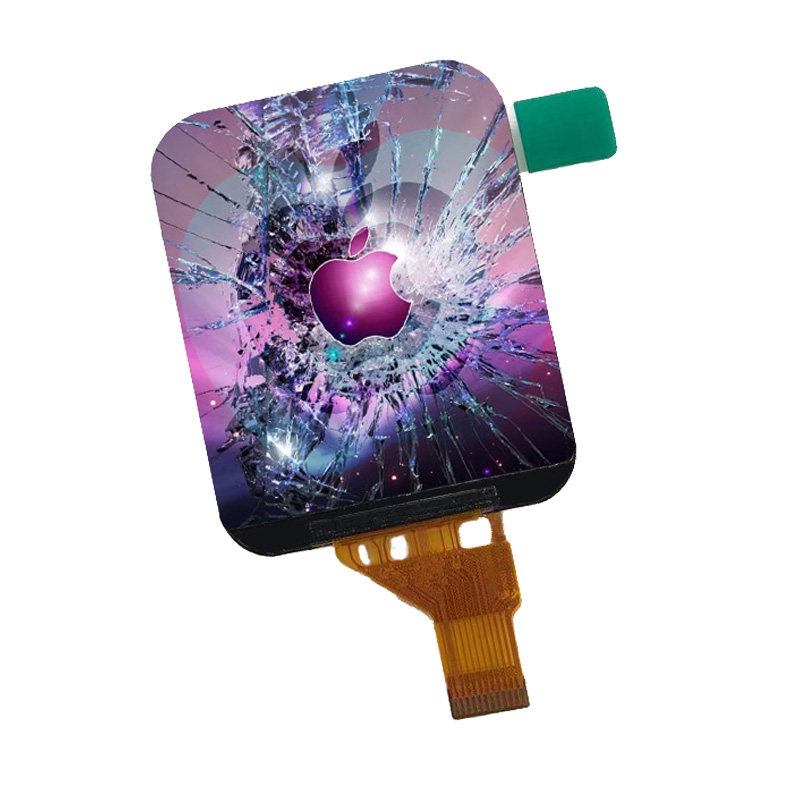

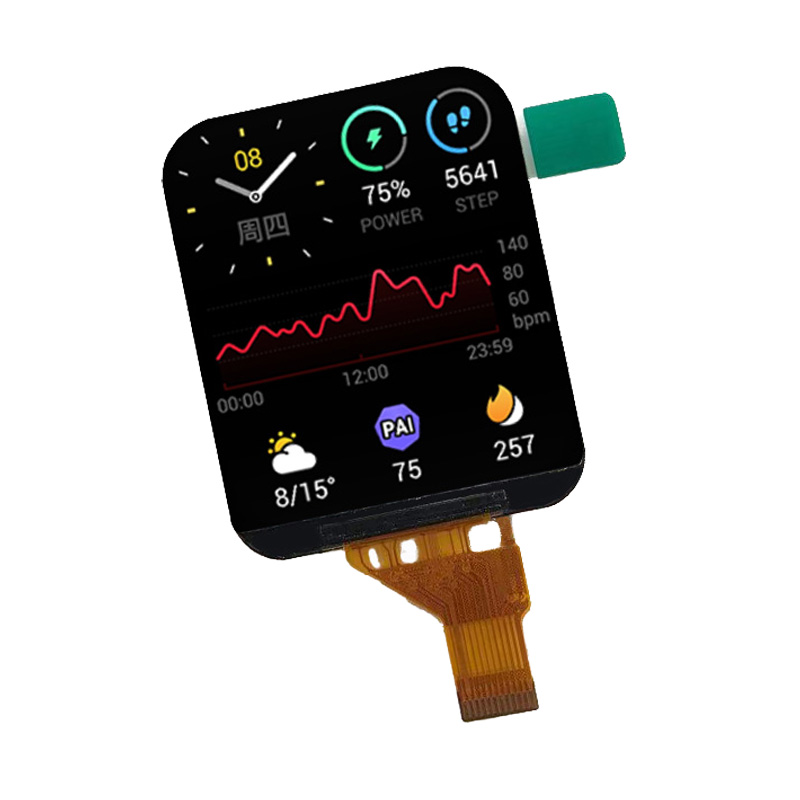

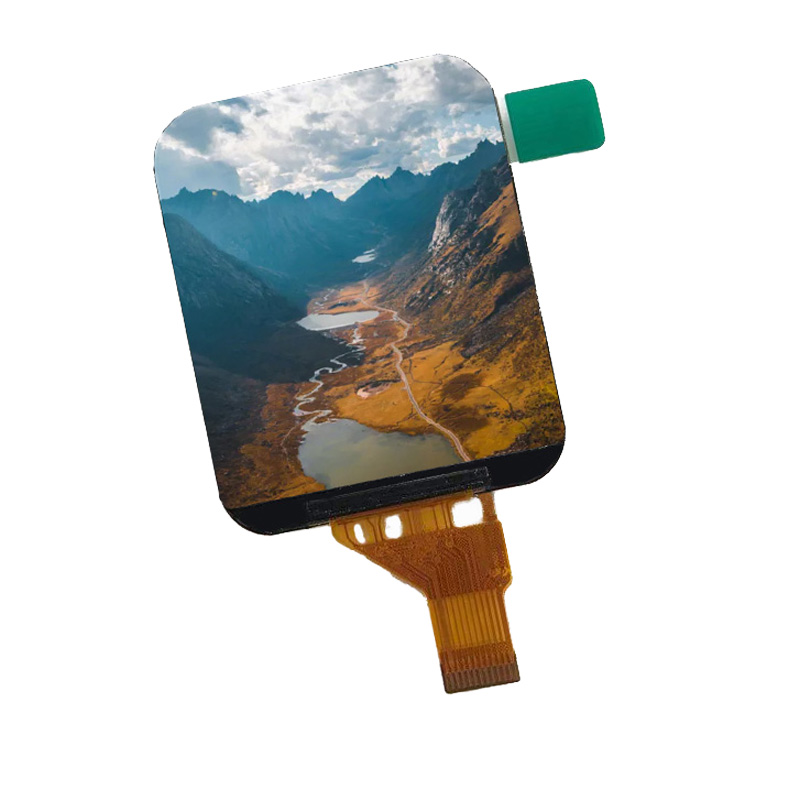

Golden Vision 1.69 Inch 240*280 TFT LCD Display Module LCD Screen

Golden Vision 1.69 Inch 240*280 TFT LCD Display Module LCD Screen

Part No: GVH0169

Panel Size: 1.69 Inch

LCD Type: IPS

Module Size: 30.07×37.43×1.56 MM

Display Area: 27.97×32.63 MM

Number of Dots: 240x280

View angle: All

Driver IC: GC9307

Interface Pins: 12 pin SPI/MCU

Luminance: 350cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 1.69-inch transmissive color active matrix LCD module.
It consists of a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to suit your specific requirements.
Optional capacitive and resistive touch panels, as well as demo boards, are available.
Our experienced team provides tailored solutions to meet your needs.
Ideal for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, ensuring adherence to environmental standards.

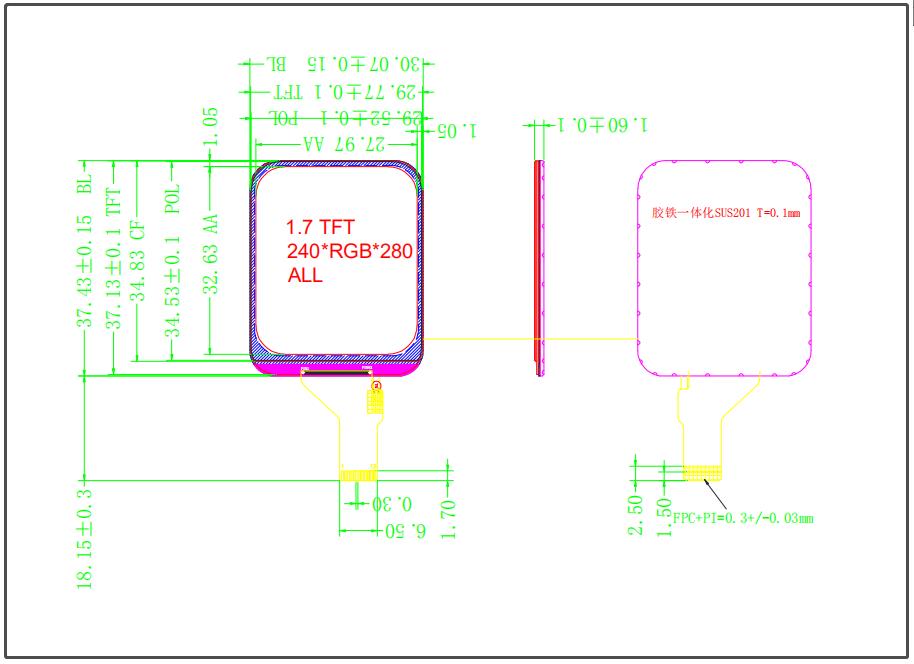

Product Drawing:
