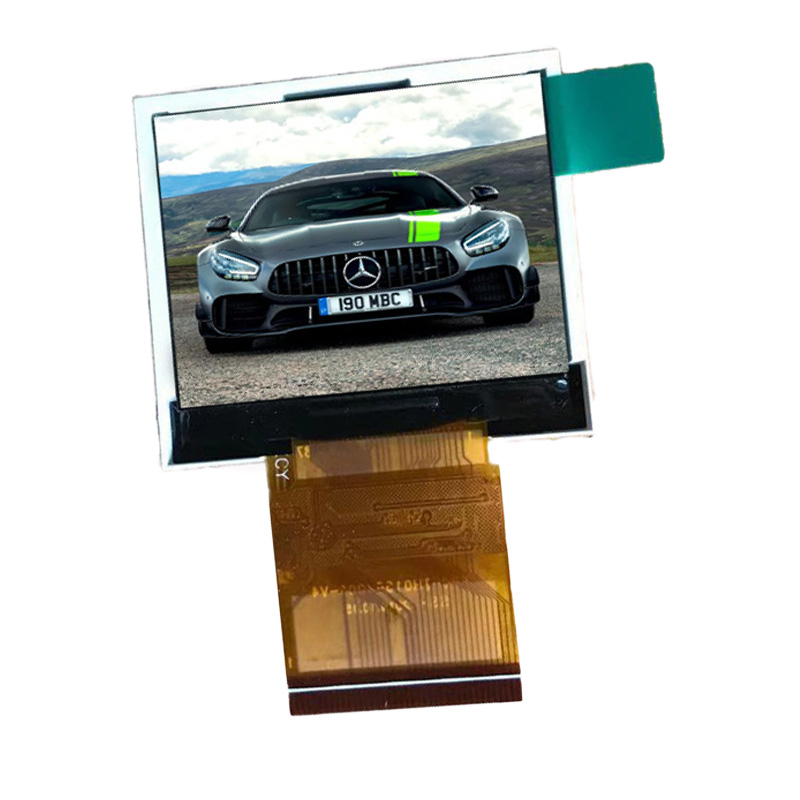

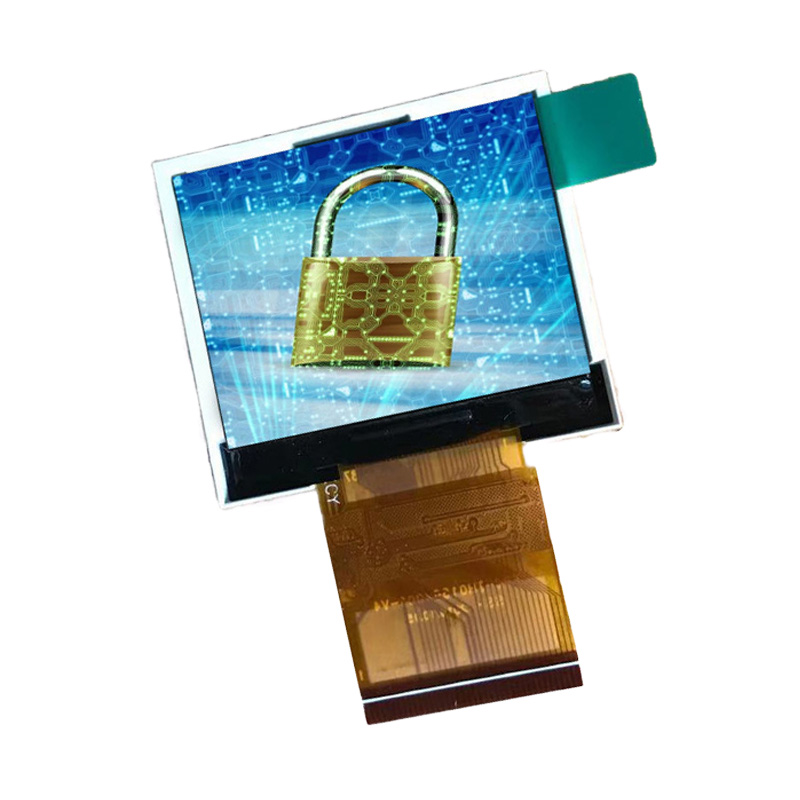

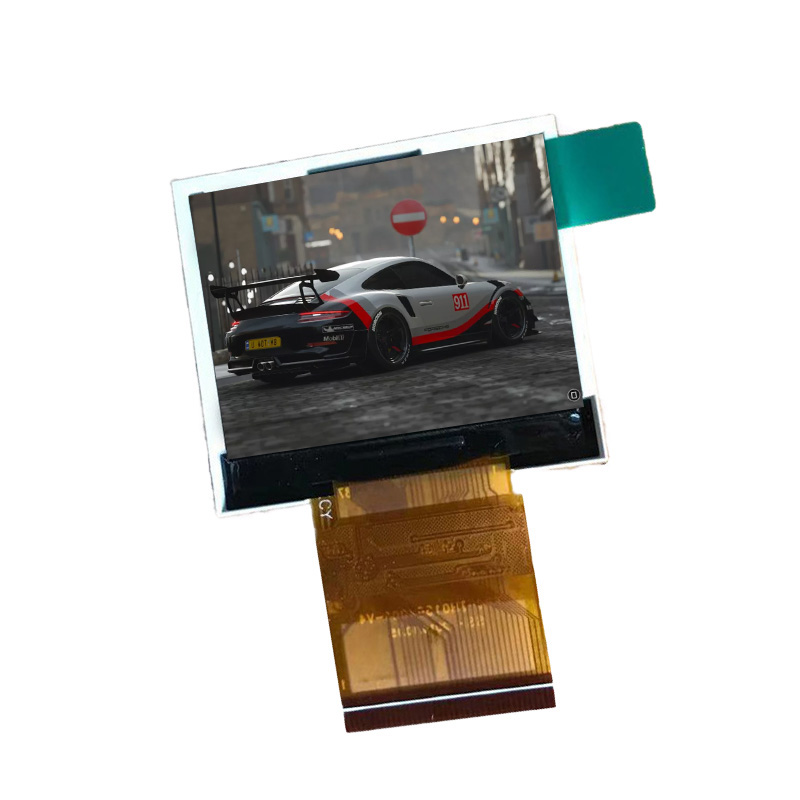

Golden Vision 1.5 Inch 480*240 TFT LCD Display Module LCD Screen

Golden Vision 1.5 Inch 480*240 TFT LCD Display Module LCD Screen

Part No: GVH0150

Panel Size: 1.50 Inch

LCD Type: TN

Module Size: 37.08x32.7 MM

Display Area: 30.76x23.32 MM

Number of Dots: 480x240

View angle: 6 o' clock

Driver IC: OTA5182A-C2

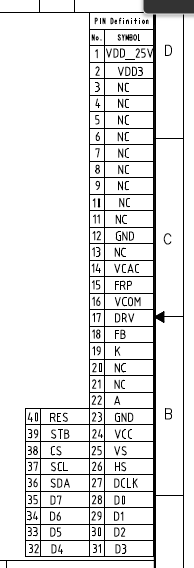

Interface Pins: 40 pin SPI 8bit+RGB

Luminance: 350cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 1.50-inch transmissive color active matrix LCD module.
It consists of a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to meet your specific needs.
Optional capacitive and resistive touch panels, as well as demo boards, are available.
Our skilled team provides tailored solutions to meet your requirements.
Ideal for applications such as infusion devices, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
Compliant with RoHS standards.

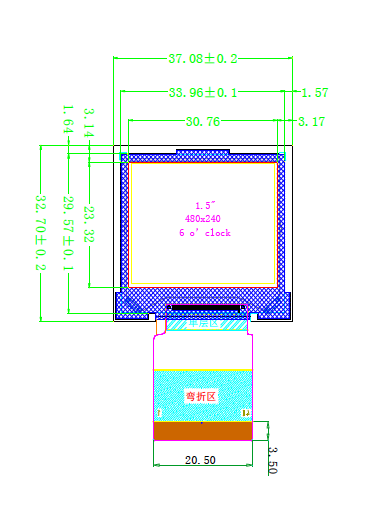

Product Drawing:
