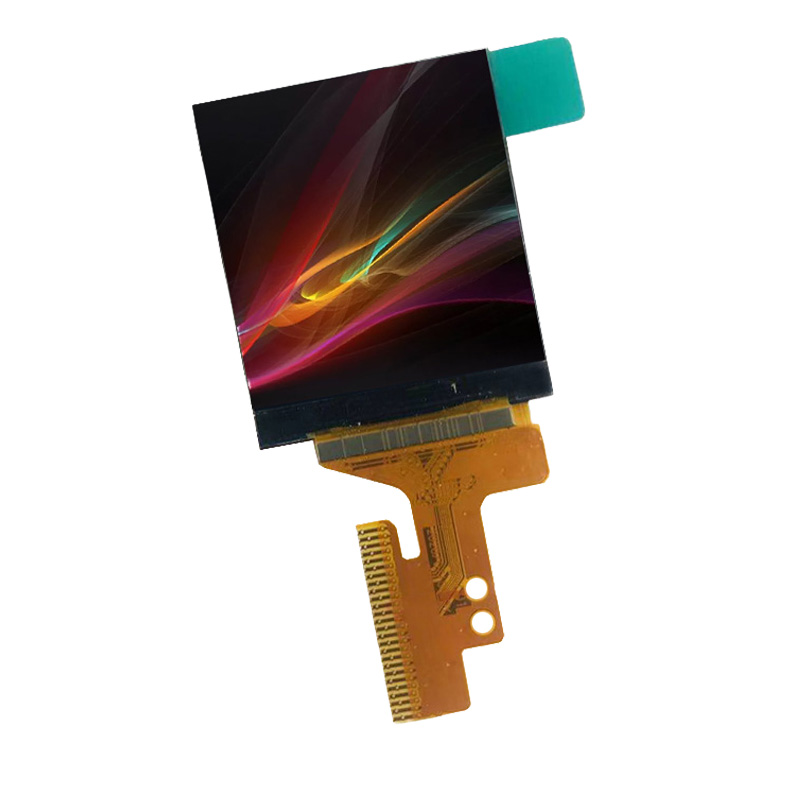

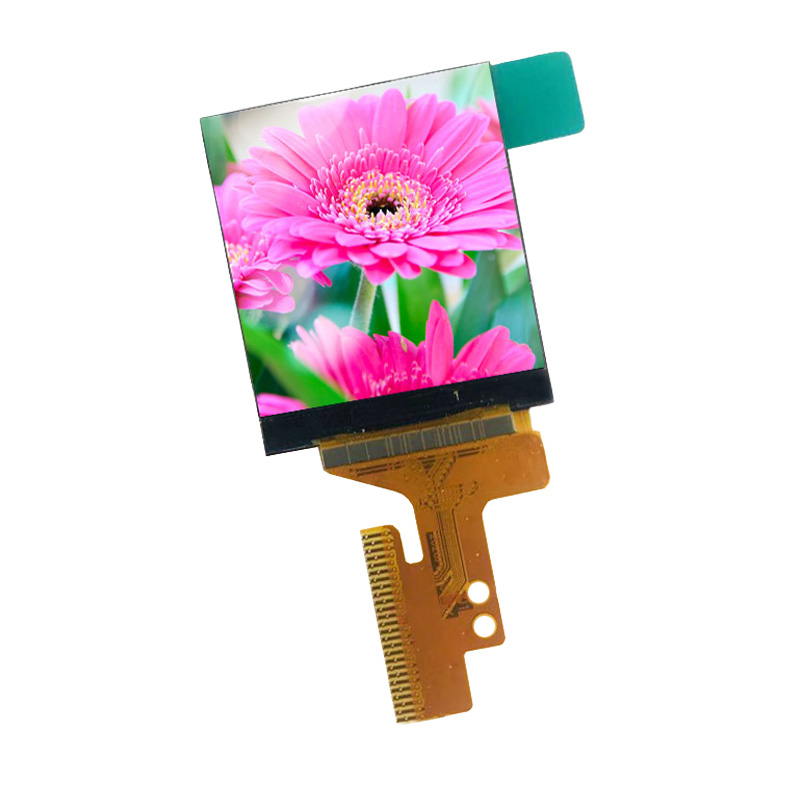

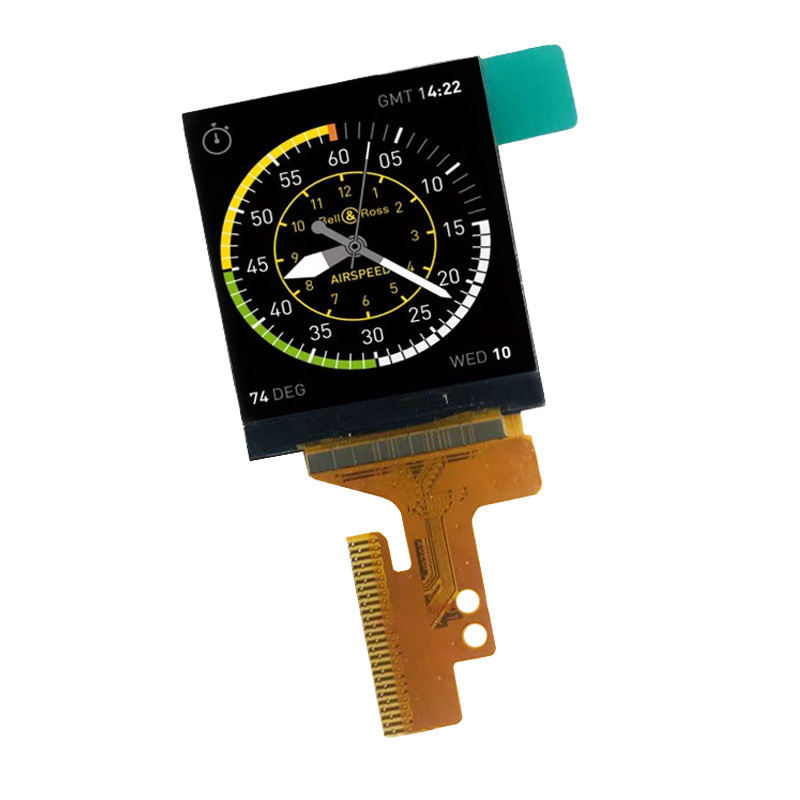

Golden Vision 1.44 Inch 128*128 TFT LCD Display Module LCD Screen

Golden Vision 1.44 Inch 128*128 TFT LCD Display Module LCD Screen

Part No: GVH0144

Panel Size: 1.44 Inch

LCD Type: TN

Module Size: 27.9x32.64 MM

Display Area: 25.5x26.5 MM

Number of Dots: 128x128

View angle: 12:00 O'Clock

Driver IC: GC9106

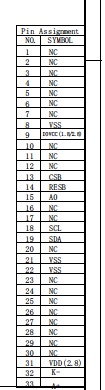

Interface Pins: 33 pin SPI

Luminance: 350cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 1.44-inch transmissive color active matrix LCD module.
It includes a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to your specific preferences.
Optional capacitive and resistive touch panels, along with demo boards, are available.
Our experienced team offers tailored solutions to fit your unique requirements.
Designed for use in applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, meeting environmental safety standards.

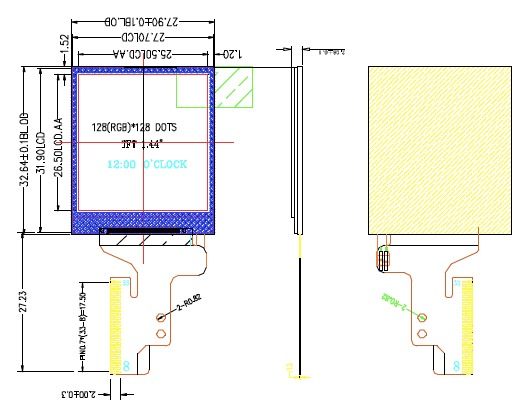

Product Drawing:
