Golden Vision 0.99 Inch 128*115 IPS round TFT LCD Display Module LCD Screen

Home

TFT display module

Golden Vision 0.99 Inch 128*115 IPS round TFT LCD Display Module LCD Screen

0.99-inch small-sized circular screen LCD

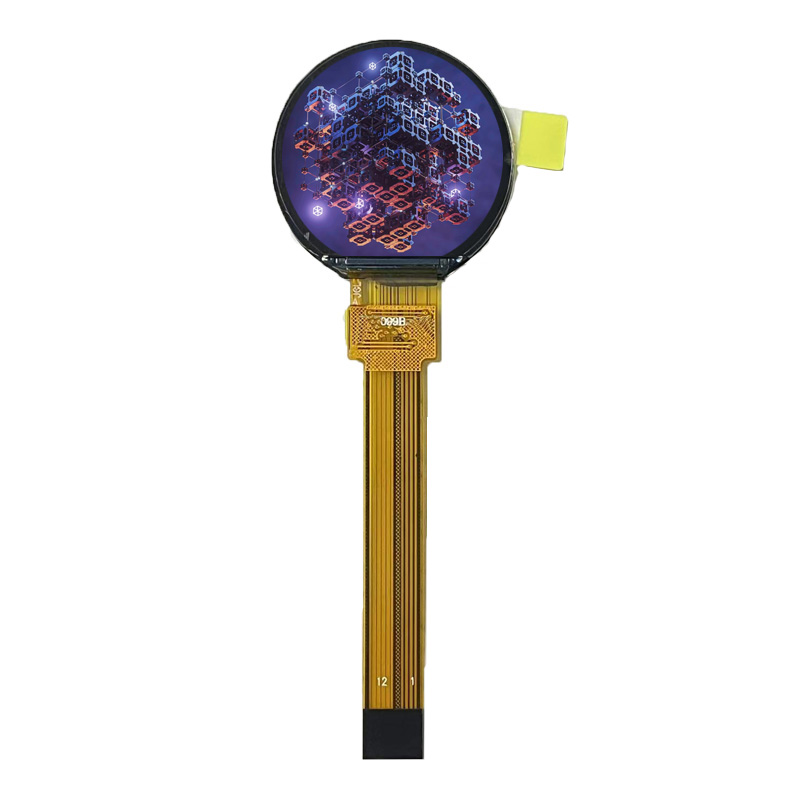

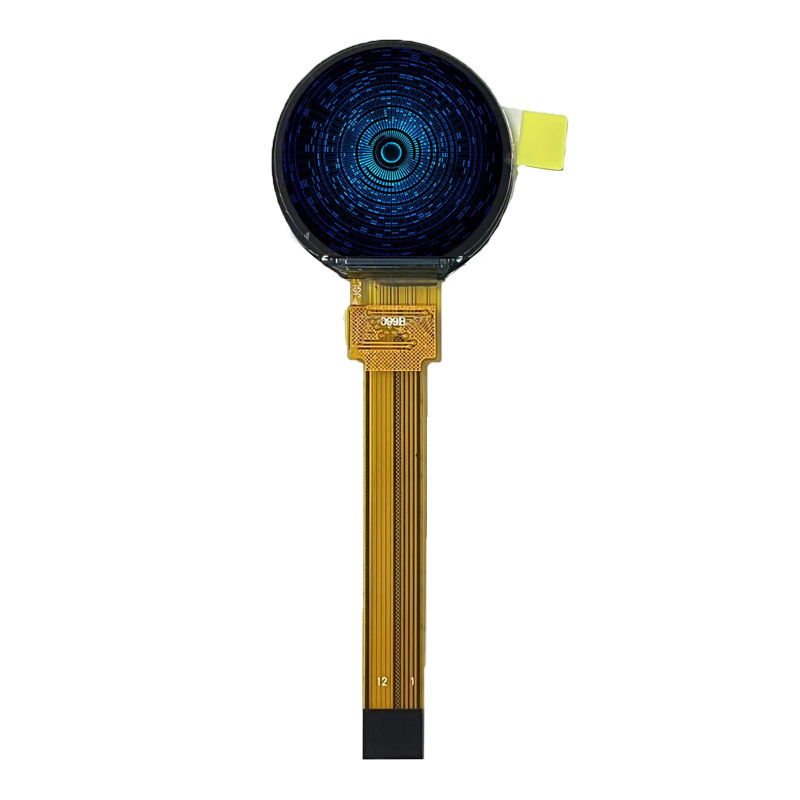

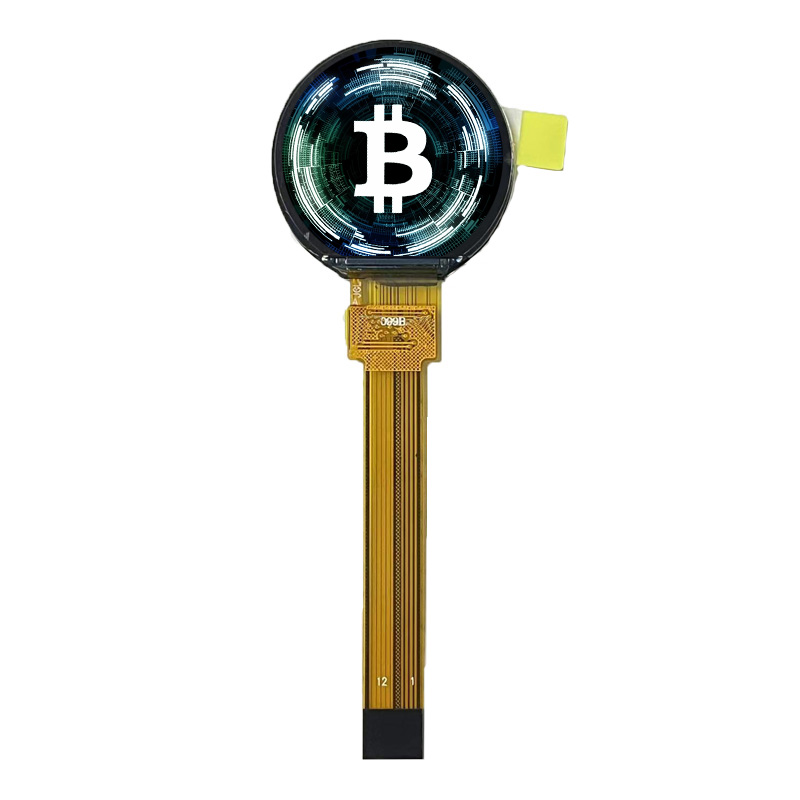

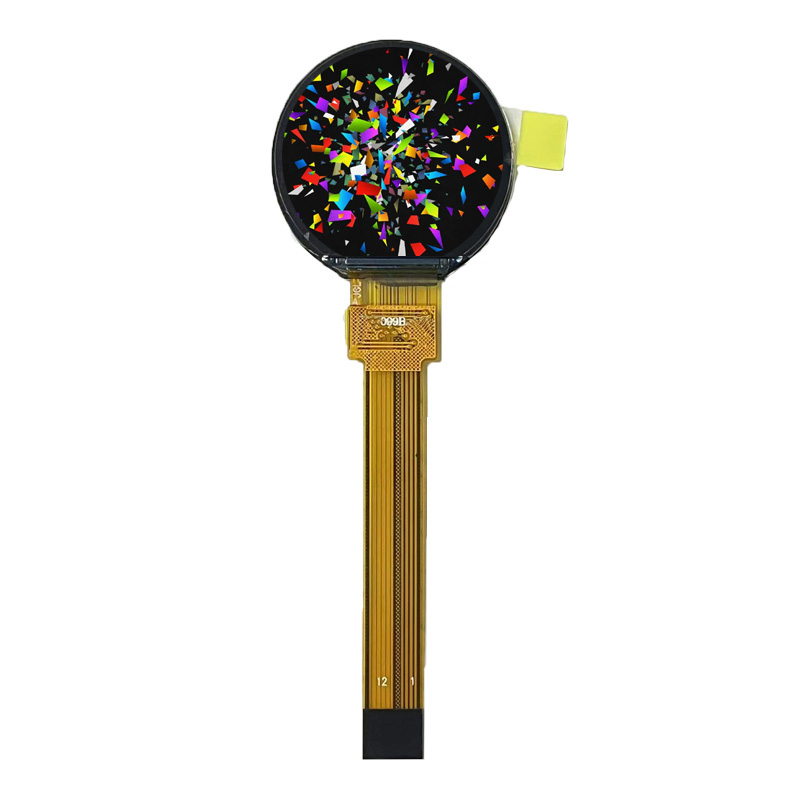

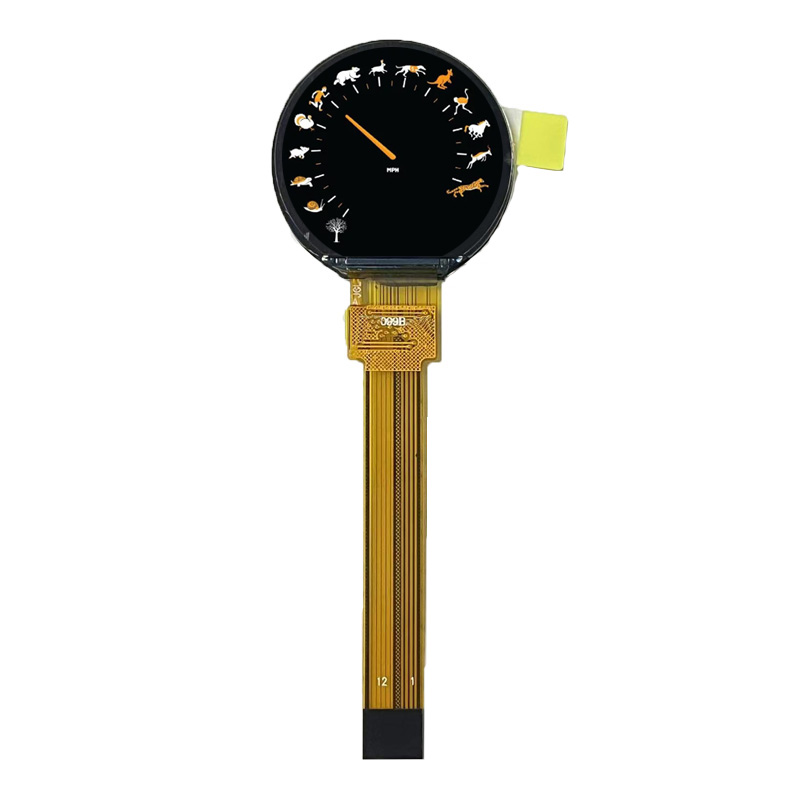

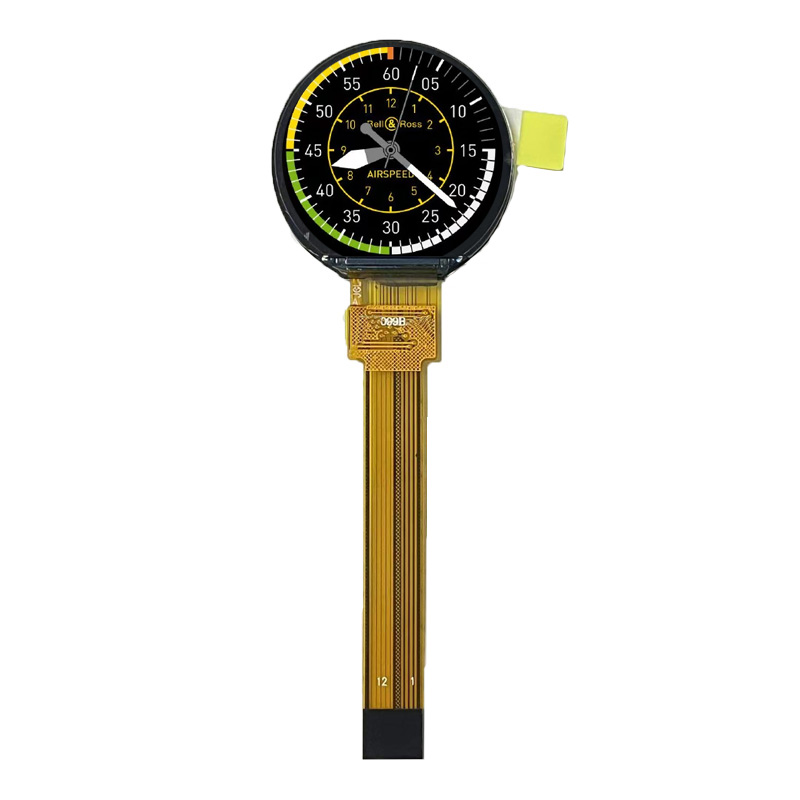

Golden Vision 0.99 Inch 128*115 IPS round TFT LCD Display Module LCD Screen

Part No: GVH0099

Panel Size: 0.99 Inch

LCD Type: IPS

Module Size: 26.71×26.22×1.86 MM

Display Area: 24.36×21.89 MM

Number of Dots: 128x115

View angle: ALL

Interface: SPI/MCU

Luminance: 350cd/m2

Inquiry now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Product Features:

This is a 0.99-inch transmissive color active matrix LCD module.
It consists of a TFT LCD panel, driver IC, FPC, and backlight unit.
The backlight brightness can be customized to fit your specific requirements.
Optional capacitive and resistive touch panels, along with demo boards, are available.
Our experienced team provides tailored solutions to meet your needs.
Suitable for applications such as infusion pumps, AEDs, blood pressure monitors, ventilators, TPMS, coffee machines, IP phones, and charging stations.
RoHS compliant, ensuring compliance with environmental standards.

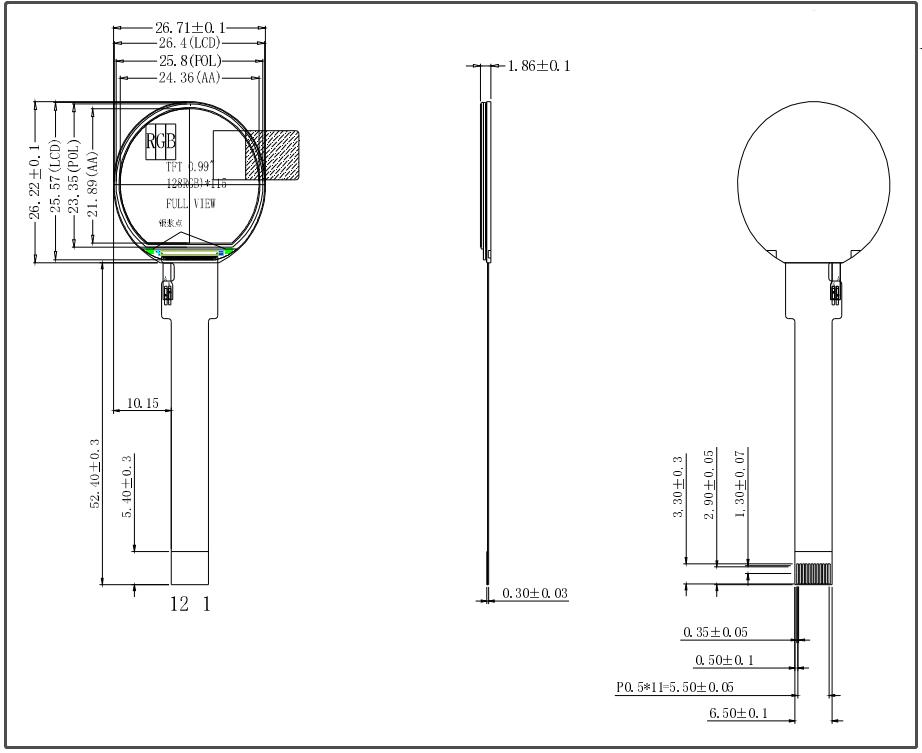

Product Drawing:

Hot Tags : 0.99 Inch TFT LCD Display Custom TFT LCD Display IPS TFT LCD Module IPS TFT LCD Display Module 0.99" LCD Display Module
