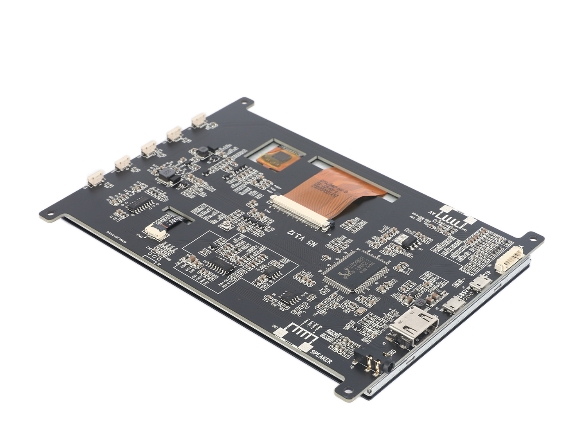

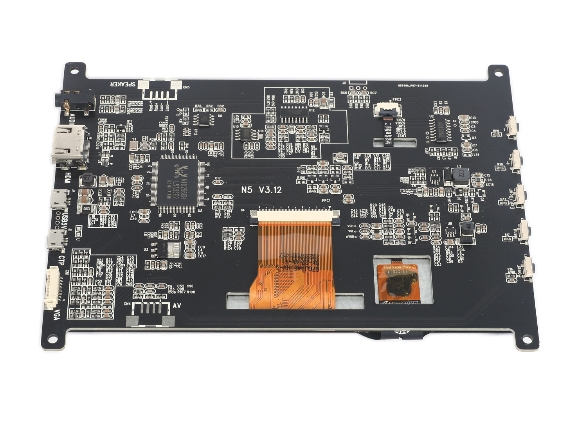

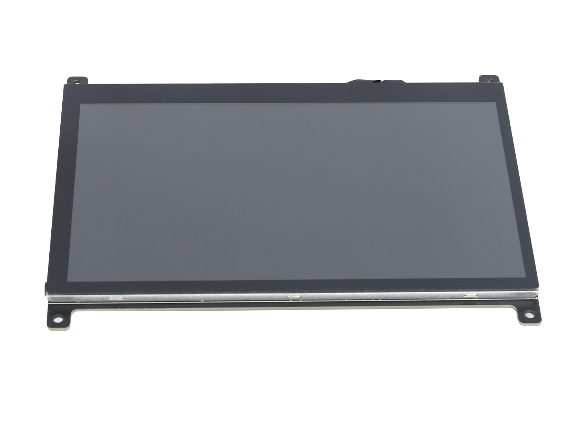

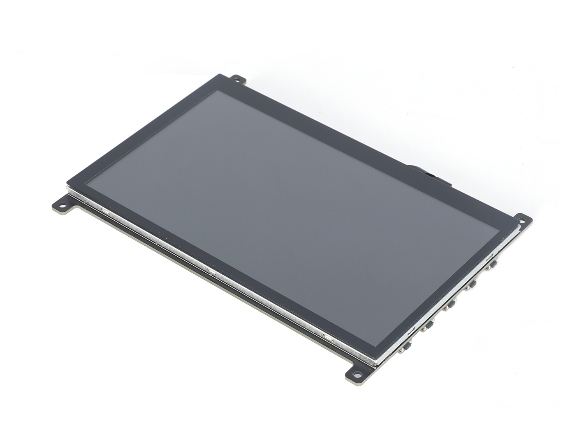

Golden Vision 7.0 Inch 1024*600 IPS TFT LCD Display Module HDMI Touch Screen
Golden Vision 7.0 Inch 1024*600 IPS TFT LCD Display Module HDMI Touch Screen
Part No: GVH070HD035S-A2
Panel Size: 7.0 Inch
LCD Type: IPS

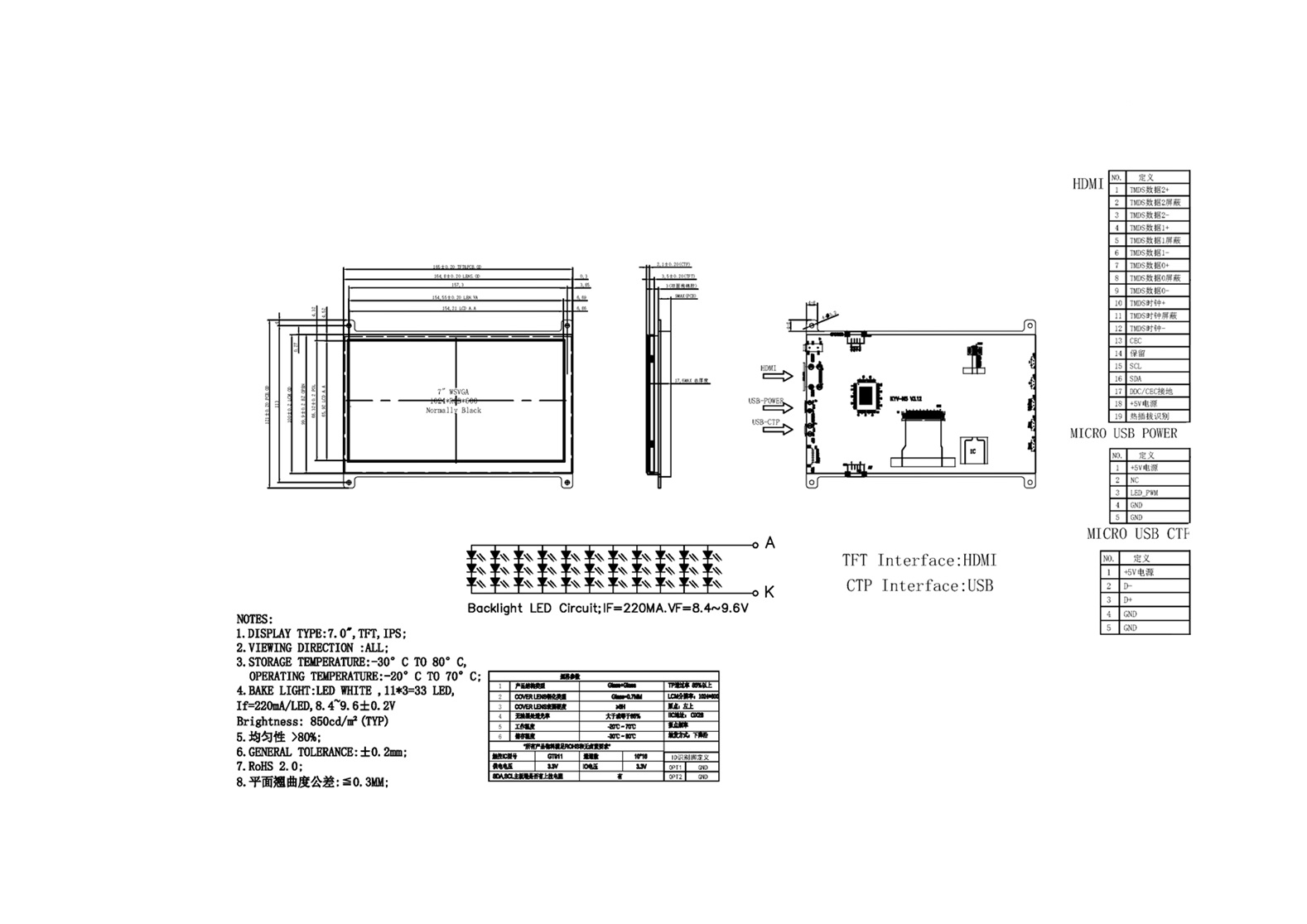

Module Size: 165x121x17.60 MM
Display Area: 154.214x85.92 MM
Number of Dots: 1024x600
View angle: ALL
Driver IC: HX8282-A11+HX8696-A
Interface Pins: 19 pin HDMI
LED Numbers: 33 LED
Luminance: 850cd/m2
With or without TP: CTP
Product Features:
This is a 7-inch transmissive color active matrix liquid crystal display (LCD) module with a capacitive touch panel (CTP) and HDMI interface. It consists of a TFT LCD panel, driver IC, FPC, backlight unit, touch panel, and cover glass. The backlight brightness can be customized according to your specifications. Both capacitive and resistive touch panels, as well as demo boards, are available for selection. Our experienced team offers customized solutions. It is suitable for applications such as infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, and charging piles, among others. RoHS compliant.
