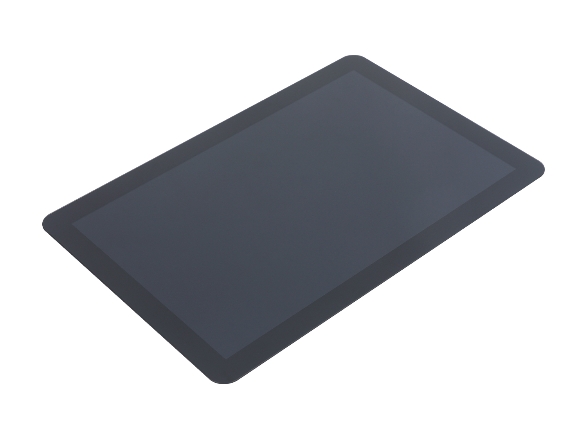

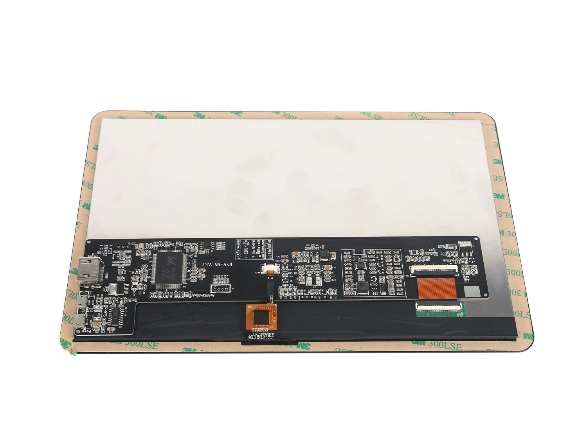

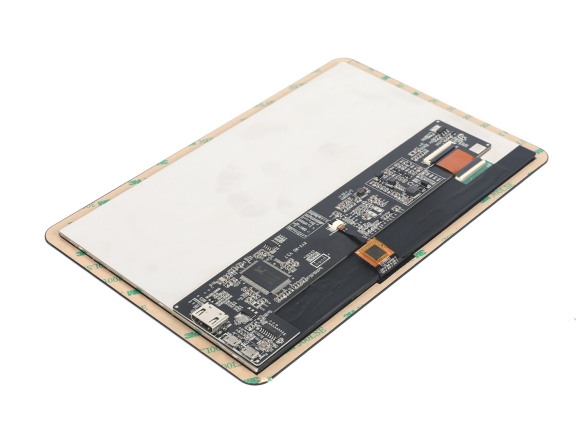

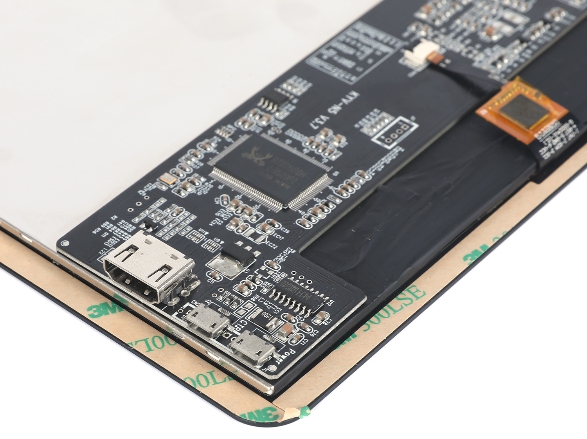

Golden Vision 10.1 Inch 1280*800 IPS TFT LCD Display Module HDMI Touch Screen

Golden Vision 10.1 Inch 1280*800 IPS TFT LCD Display Module HDMI Touch Screen

Part No: GVH101IA-01G-A00

Panel Size: 10.1 Inch

LCD Type: IPS

Module Size: 245.96x164.60x4.95 MM

Display Area: 216.96x135.60 MM

Number of Dots: 1280x800

View angle: ALL

Driver IC: ILI6192+ILI5801

Interface Pins: 19 pin HDMI

LED Numbers: 30 LED

Luminance: 250cd/m2

With or without TP: CTP



Product Features:

This is a 10.1-inch transmissive color active matrix liquid crystal display (LCD) module featuring a CTP and HDMI interface. It consists of a TFT LCD panel, driver IC, FPC, backlight unit, touch panel, and cover glass. The backlight brightness can be customized to your specifications. Both capacitive and resistive touch panels, as well as demo boards, are available for your selection. Our experienced team offers customized solutions. It is suitable for applications such as infusion devices, AEDs, sphygmomanometers, ventilators, TPMS, coffee machines, IP phones, and charging piles, among others. RoHS compliant.
