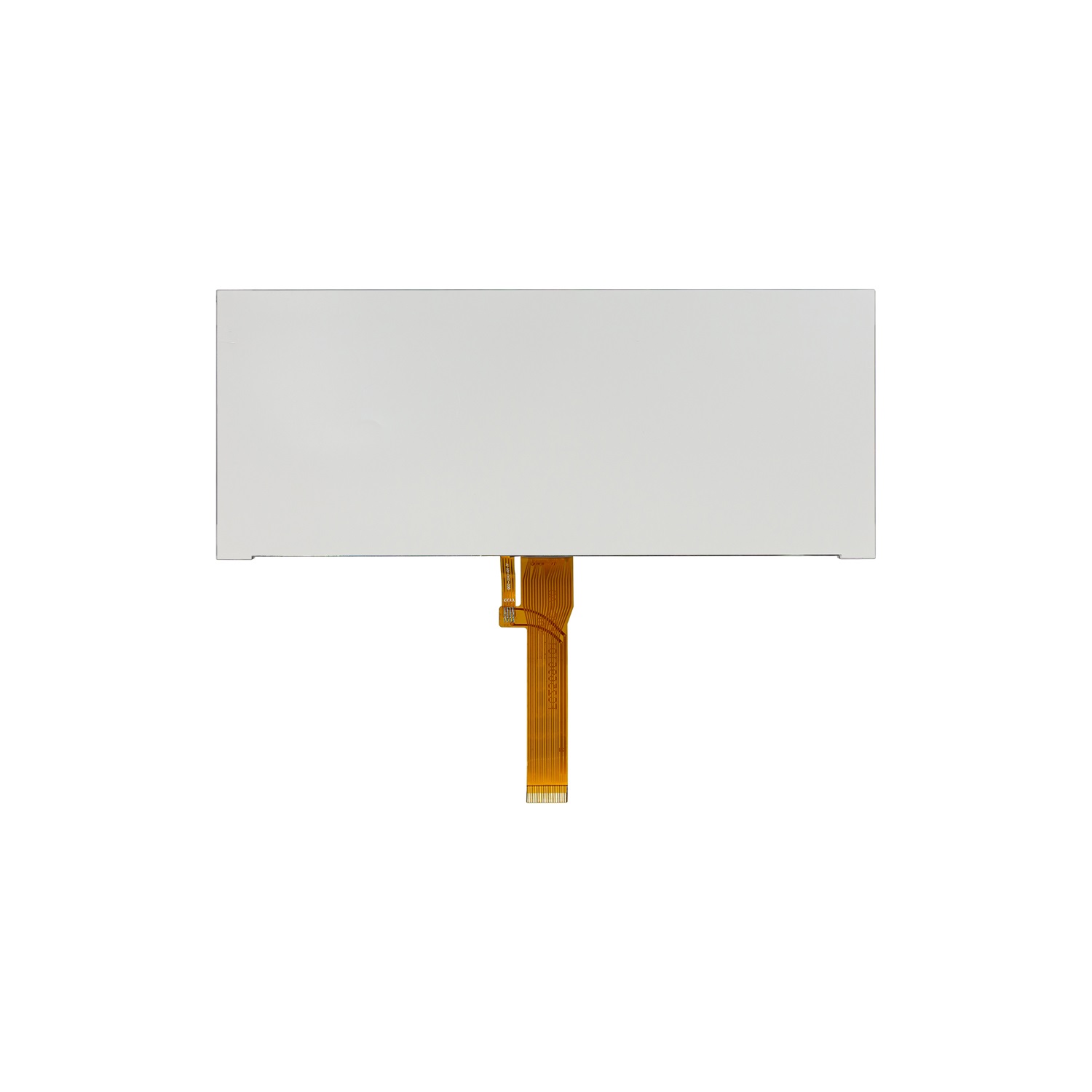

Golden Vision Mono LCD Display 256*96 FSTN/Positive/Transflective LCD Module

Golden Vision Mono LCD Display 256*96 FSTN/Positive/Transflective LCD Module

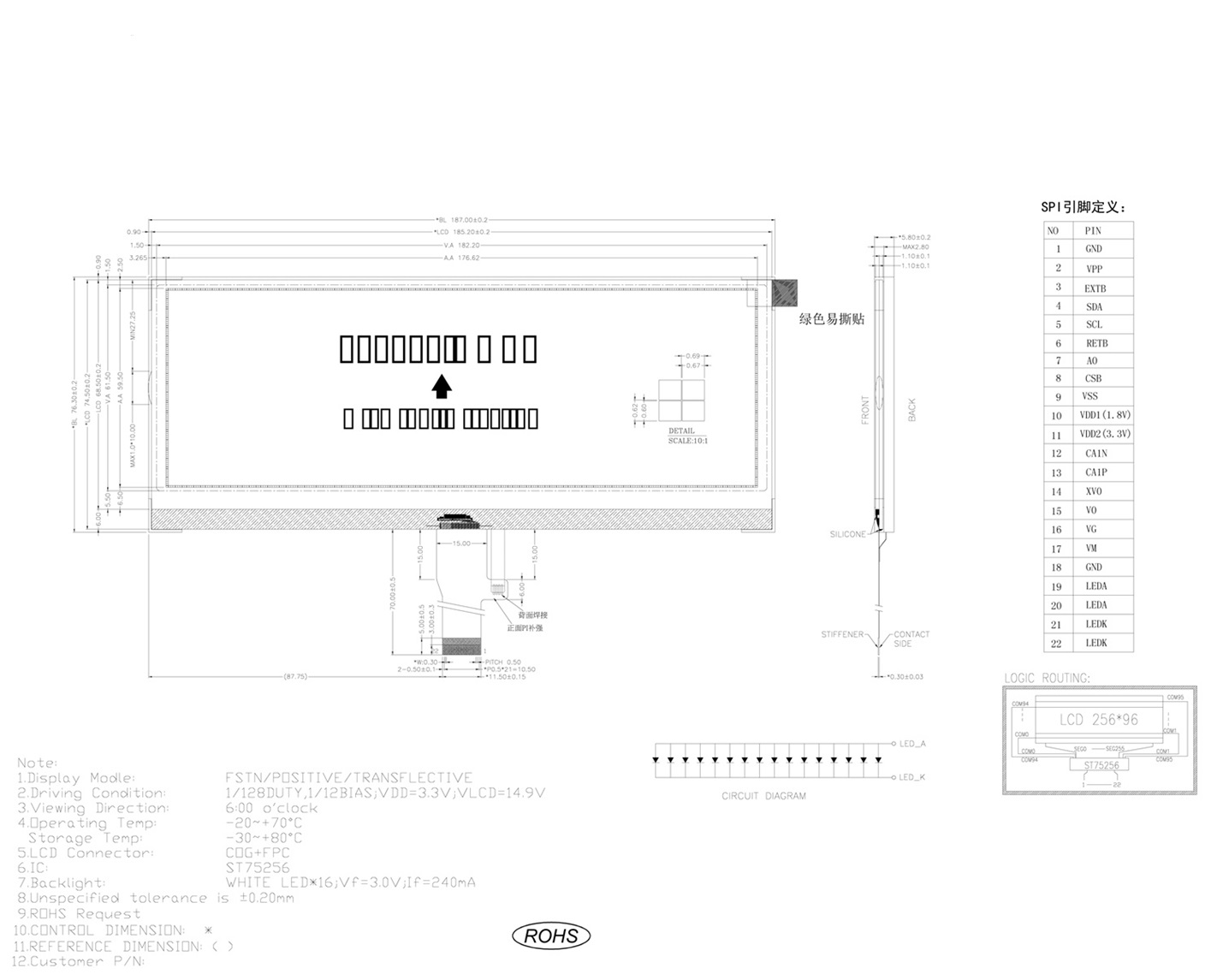

Part No: GVH25696101-FGFW

Display mode: FSTN/POSITIVE/TRANSFLECTIVE

Driving condition: 1/128 DUTY, 1/12 BIAS, VDD=3.3V, VLCD=14.9V

Module Size: 187x76.3 MM

Display Area: 176.62x59.5 MM

Number of Dots: 256x96

View angle: 6:00 o'clock

Driver IC: ST75256

Interface Pins: 22 pins SPI

Operating Temp: -20~70

Storage Temp: -30~80

LCD connector: COG+FPC

Backlight: white LED*16, VF=3.0V, IF=240mA
