Golden Vision Mono LCD Display 128*48 FSTN/Positive/Transflective LCD Module

Golden Vision Mono LCD Display 128*48 FSTN/Positive/Transflective LCD Module

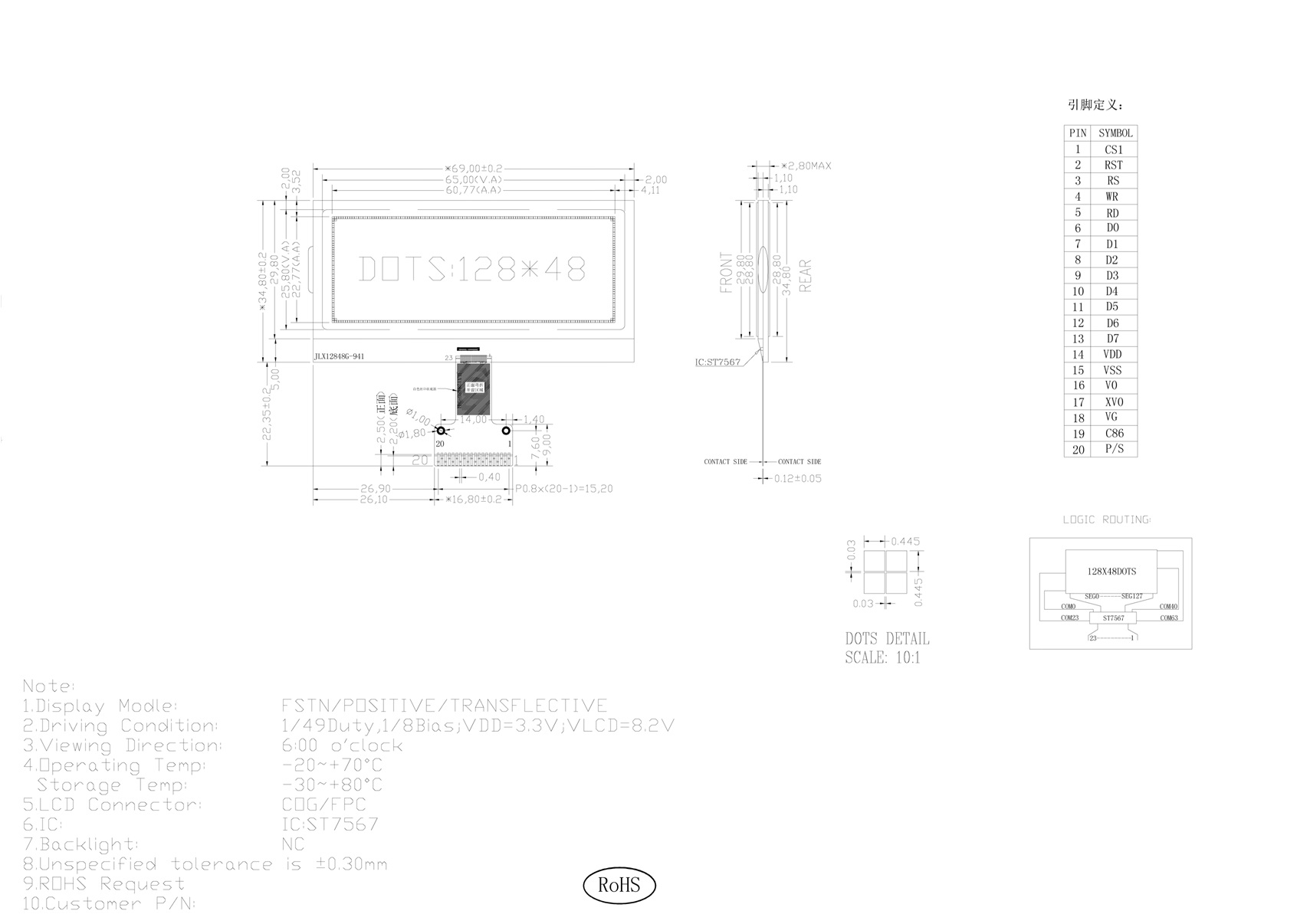

Part No: GVH12848011-FKNN

Display Mode: FSTN/Positive/Transflective

Driving Condition: 1/49 duty, 1/8 bias, vdd=3.3V, VLCD=8.2V

Module Size: 69x34.8 MM

Display Area: 60.77x22.77 MM

Number of Dots: 128x48

View angle: 6:00 o'clock

Driver IC: ST7567

Interface Pins: 20 pins SPI

Operating Temp: -20~70

Storage Temp: -30~80

LCD Connector: COG+FPC

Backlight: white LED*5, VF=3V, IF=75mA
